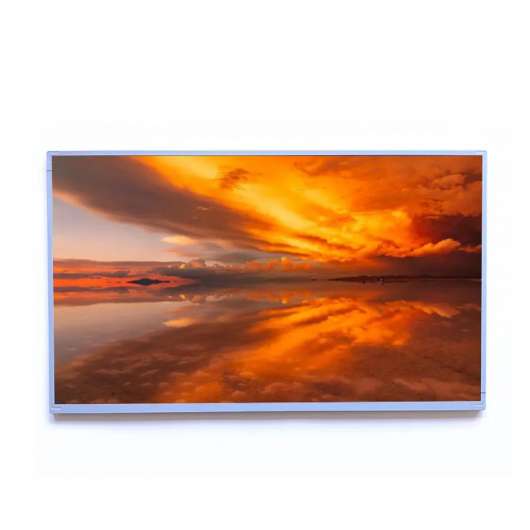

Name: G101STN01.G AUO 10.1 inch resolution 1024x600 lcd screen backlight 500nits LVDS
Brand: AUO
SKU: G101STN01.G

G101STN01.G AUO 10.1 inch resolution 1024x600 lcd screen backlight 500nits LVDS

G101STN01 G AUO 10 1 inch resolution 1920x1200 lcd screen backlight 500nits LVDS

Model	G101STN01.G
Brand	AUO
Size	10.1inch
Resolution	1024*600
Brightness	200cd/m2
Perspective	70/70/60/60 (Typ.)
Interface	LVDS
Operating Temp	-10 ~ 60 °C
Production State	Discontinued

Click For Price

1、AUO G101STN01.G Application Details

Basic Info :	Panel Brand	AUO	Panel Model	G101STN01.G
	Diagonal Size	10.1"	Application	Industrial
	Panel Type	a-Si TFT-LCD , LCM
Reliability :	Operating Temp.	-10 ~ 60 °C	Storage Temp.	-30 ~ 70 °C
Reliability :	RoHS State	RoHS	Vibration Rating	1.5G (14.7 m/s²)
Specific Features :	WLED Backlight，180°Reverse，,With LED Driver，Reverse I/F,6/8 bit,Matte

2、AUO G101STN01.G Mechanical Details

Pixel Features :	Pixel Format	1024(RGB)*600, WSVGA	Dot Pitch	0.07250.2088 mm (HV)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.21750.2088 mm (HV) [117PPI]
Mechanical Size :	Display Area	222.72125.28 mm (HV)	Outline Dim.	226.34128.1 mm (HV)
Mechanical Size :	Outline Dim.	235143 mm (HV)	Outline Depth	4.9/5.2 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Weight	180g (Typ.)	Surface	Antiglare, Hard coating (3H)

3、AUO G101STN01.G Optical Details

Brightness	Brightness	250 cd/m² (Typ.)	Contrast Ratio	500:1(Typ.) (Transmissive)
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	-	Response Time	7/9 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K/16.7M (6-bit / 6-bit +Hi- FRC)
Color Performance :	Color Temperature	6485K	Uniformity	1.25 (Max.)(5 points)
1931 Color Gamut :	NTSC Ratio	47%	sRGB	65% coverage
	Adobe RGB	49% coverage	DCI-P3	48% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4、AUO G101STN01.G Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	1.8W (Typ.)

5、AUO G101STN01.G Backlight Details

Back-light Features :	Lamp Type	WLED	Amount	-	Life Time	15K(Min.) Hours
Back-light Features :	Replacement	-	Lamp Shape	-	Position	Edge light type
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	9.0/12.0/15V (Min./Typ./Max.)		Current Input	110/125mA (Typ./Max.)
Driver Electrical :	Consumption	1.32/1.5W (Typ./Max.)

6、AUO G101STN01.G Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	140/160mA (Typ./Max.)

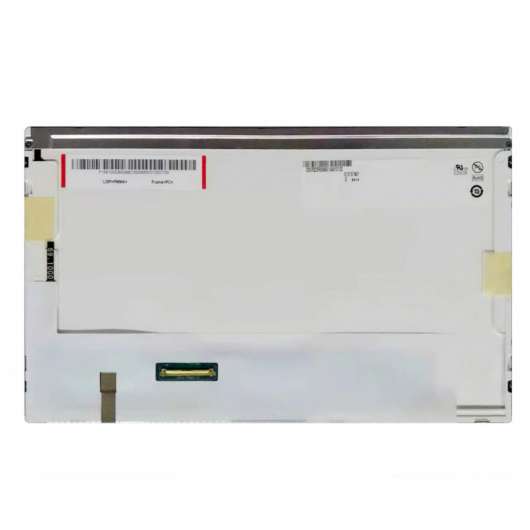

Interface Features :	Type	Connector		Position	Down left of panel
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	I-PEX	20455-040E-76	0.5 mm	40 pins	1 pcs

7、AUO G101STN01.G Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	35 pcs / box	9.9 Kgs	528348252 mm
