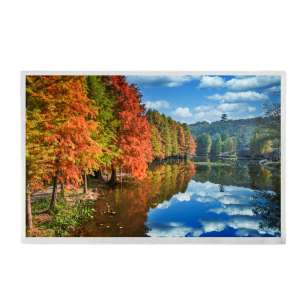

G121EAN01.1 12.1" Medical LCD Display| 1280×800 IPS 30Pin LVDS Panel

G121EAN01 1 Medical-grade AUO 12 1 " TFT IPS display with 1280×800 resolution, 30pin LVDS interface and anti-bacterial coating Certified for surgical monitors, diagnostic equipment and hospital HMIs

Model	G121EAN01.1
Brand	AUO
Size	12.1inch
Resolution	1280*800
Brightness	400cd/m2
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	-30 ~ 80 °C
Production State	In Production

Click For Price

1.AUO G121EAN01.1 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G121EAN01.1
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	12.1inch	Designed For	Idustrial，Medical Imaging
Maximum Ratings :	OP Temperature	-30 ~ 85°C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Srgb，Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver, Matte,6/8 bit

2.AUO G121EAN01.1 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	99% coverage
	Adobe RGB	75% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.AUO G121EAN01.1 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*800 [WXGA]			Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.068*0.204 mm			Pixel Pitch(W*H)	0.204*0.204 mm [124PPI]
Physical Size :	Active Viewing(mm)	261.12(W)*163.2(H) mm			Outline Dim.	264.22168.12 mm (HV)
	Outline Dim.	278184 mm (HV)			Depth(mm)	9.29 (Max.) mm
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	16:10 (H:V)			Orientation	Landscape type
Mounting :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight		480g (Max.)	Treatment			Antiglare, Hard coating (3H)

4.AUO G121EAN01.1 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	7.05W (Max.)

5.AUO G121EAN01.1 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	458mA (Max.)
Signal Electrical :	Consumption	1.65W (Max.)		Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STARCONN	093G30-B0001A-1	1.0mm	30 pins	1 pcs	LVDS-30P1C8B-105A

6.AUO G121EAN01.1 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position		Edge light type
	Exchange	-		Lamp Shape		-	Lamp Life		50K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		0.45A (Typ.)		Current Supply			10/12/15V (Min./Typ./Max.)
	Consumption		5.4W (Typ.)

7.AUO G121EAN01.1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	15.5 Kgs	450375320 mm (LWH)
