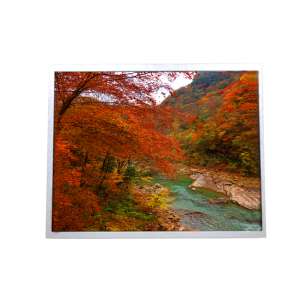

AUO G121EAN01.3 12.1" 1500nits LCD Panel | -30~85°C IP65 Outdoor Industrial Display

G121EAN01.3
G121EAN01.3
  • G121EAN01.3
  • G121EAN01.3

AUO G121EAN01.3 12.1" 1500nits LCD Panel | -30~85°C IP65 Outdoor Industrial Display

1500nits AUO G121EAN01 3 12 1-inch LCD (1280×800), IP65-rated & -30~85°C operation LVDS 20-pin connector for oil rigs, desert solar systems, and construction HMIs 100% original Request sunlight test videos and bulk OEM pricing

Model G121EAN01.3
Brand AUO
Size 12.1inch
Resolution 1280*800
Brightness 1500cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1.AUO  G121EAN01.3 Application Details

Basic Detail :ManufacturerAUOModel NameG121EAN01.3
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size12.1inchDesigned ForIdustrial，Outdoor High Brighness
Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-30 ~ 85  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Srgb，Wide Temperature，Ultra High Brightness，WLED Backlight，Life>=70K hours, Matte,6/8 bit


2.AUO G121EAN01.3 Optical Details

Basic Information :Luminance1500 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Operating ModeIPS, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.33 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio73%sRGB99% coverage
Adobe RGB75% coverageDCI-P375% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


3.AUO   G121EAN01.3 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800 [WXGA]ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.068*0.204 mmPixel Pitch(W*H)0.204*0.204 mm  [124PPI]
Physical Size :Active Viewing(mm)261.12(W)*163.2(H) mmOutline Dim.264.22*168.12 mm (H×V)
Outline Dim.283*185.1 mm (H*V)Depth(mm)9.4 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M2) on left, right bezel
Other Spec :Weight490g (Max.)TreatmentAntiglare, Hard coating (3H)


4.AUO G121EAN01.3 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :11.0W (Typ.)


5.AUO   G121EAN01.1 Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply500mA (Max.)
Consumption1.65W (Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
JSTSM10B-SHLS-TF(LF)(SN)1.0mm10 pins1 pcsBLE-10PINS-NNCAACCAAC


6.AUO  G121EAN01.3 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life70K(Min.) (Hours)
Lamp Electrical Voltage Supply30/34V (Typ./Max.)Current Supply78mA (Typ.)
Consumption9.36/10.6W (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModel
 		Pin PitchPinsAmountConfiguration
JSTSM10B-SHLS-TF(LF)(SN)
1.0 mm		10 pins1 pcsBLE-10PINS-NNCAACCAAC


7.AUO  G121EAN01.3 Packing Details

Package Box :QuantityWeightBox Size
20 pcs / box- -
