AUO G101EVN03.1 10.1" 1280×800 1000nits TFT-LCD Panel | Sunlight Readable | Industrial

AUO G101EVN03.1 10.1` 1280×800 1000nits TFT-LCD Panel
AUO G101EVN03.1 10.1` 1280×800 1000nits TFT-LCD Panel
  • AUO G101EVN03.1 10.1` 1280×800 1000nits TFT-LCD Panel
  • AUO G101EVN03.1 10.1` 1280×800 1000nits TFT-LCD Panel

AUO G101EVN03.1 10.1" 1280×800 1000nits TFT-LCD Panel | Sunlight Readable | Industrial

Original AUO G101EVN03 1 10 1-inch industrial LCD 1000 cd m² brightness, sunlight readable with anti-reflective coating Wide temperature (-30°C~85°C), 1280×800 resolution For outdoor kiosks transportation Request specifications and sample batch prices

Model G101EVN03.1
Brand AUO
Size 10.1inch
Resolution 1280*800
Brightness 1000 cd/m² (Typ.)
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Upcoming shutdown
Click For Price

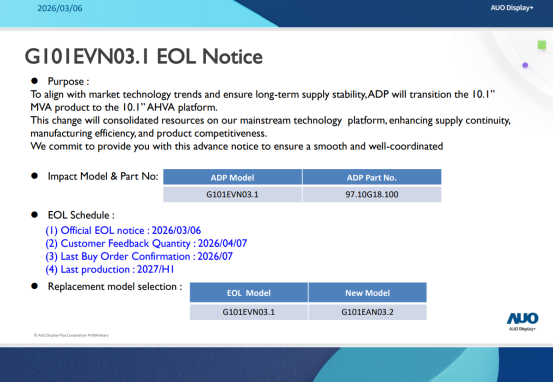

G101EVN03.1 is about to be discontinued.  Official EOL notice :2026/03/06,  Last Buy Order Confirmation : 2026/07. Customers are requested to prepare in advance. The compatible alternative model is G101EAN03.2.

1.AUO  G101EVN03.1 Application Details

Basic Detail :ManufacturerAUOModel NameG101EVN03.1
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size10.1inchDesigned ForIdustrial,Outdoor High Brightness
Maximum Ratings :OP Temperature-20~ 60°C ST Temperature-30 ~70 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Ultra High Brightness，WLED Backlight，Life>=50K hours,6/8 bit，Reverse I/F,Glossy


2.AUO G101EVN03.1 Optical Details

Basic Information :Luminance1000 cd/m² (Typ.)Contrast Ratio1300:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeMVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color262K/16.7M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.43 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio46%sRGB65% coverage
Adobe RGB48% coverageDCI-P348% coverage
Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmittance-


3.AUO G101EVN03.1 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800 [WXGA]ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.0565*0.1695 mm (H*V)Pixel Pitch(W*H)0.1695*0.1695 mm (H*V)  [149PPI]
Physical Size :Active Viewing(mm)216.96*135.6 mm (H*V)Outline Dim.(mm)249.56(W)*168.2(H) mm
Bezel Opening(mm)-Overall Depth(mm)5.6/7.75 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio16:10(H:V)OrientationLandscape type
Mounting :Without
Other Detail :Weight350g (Max.)SurfaceGlare (Haze 0%)


4.AUO G101EVN03.1  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


5.AUO G101EVN03.1 Interface Detail

Signal Electrical :Input Current192/270mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.63/0.89W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JAEHD1S040HA10.5mm40pins1 pcs


6.AUO G101EVN03.1 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life50K(Min.) (Hours)
Lamp Electrical :Voltage Input28.8±3.6VCurrent Input70mA (Typ.)
Consumption7.4W (Typ.)
Interface Features :Position-TypeIncluded in panel signal interface
Backlight Driver :No
