G101EVN01.0 AUO 10.1" 1280x800 TFT-LCD Panel | Industrial Machine Tool Display

G101EVN01.0 AUO 10.1` 1280x800 TFT-LCD Panel
G101EVN01.0 AUO 10.1` 1280x800 TFT-LCD Panel
  • G101EVN01.0 AUO 10.1` 1280x800 TFT-LCD Panel
  • G101EVN01.0 AUO 10.1` 1280x800 TFT-LCD Panel

G101EVN01.0 AUO 10.1" 1280x800 TFT-LCD Panel | Industrial Machine Tool Display

Original AUO G101EVN01 0 10 1-inch LCD Panel (1280×800) for CNC machine tools IP54-rated anti-oil coating, 24 7 operation durability Obtain samples and bulk quotations

Model G101EVN01.0
Brand AUO
Size 10.1inch
Resolution 1280*800
Brightness 300cd/m²
Perspective 85/85/85/85
Interface LVDS
Operating Temp -20 ~ 60 °C
Production State Upcoming shutdown
Click For Price

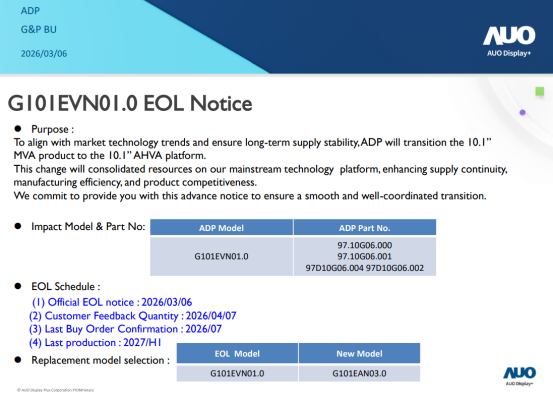

G101EVN01.0 is about to be discontinued.  Official EOL notice :2026/03/06,  Last Buy Order Confirmation : 2026/07. Customers are requested to prepare in advance. The compatible alternative model is G101EAN03.0.

1.AUO G101EVN01.0 Application Details

Basic Detail :ManufacturerAUOModel NameG101EVN01.0
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size10.1inchDesigned ForIdustrial
Maximum Ratings :OP Temperature-20~ 60°CST Temperature-30 ~ 70 °C
RoHSRoHSVibration Level
Features :WLED Backlight , With LED Driver，Reverse I/F


2.AUO G101EVN01.0 Optical Details

Basic Information :Luminance300 cd/m² (Typ.)Contrast Ratio1300:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeMVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color262K (6-bit)
Color Temperature6485KWhite Variation1.25 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio47%sRGB66% coverage
Adobe RGB49% coverageDCI-P349% coverage
Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO G101EVN01.0 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.0565*0.1695 mm Pixel Pitch(W*H)0.1695*0.1695 mm [149PPI]
Physical Size :Active Viewing(mm)216.96*135.6 mm (H*V)Outline Dim.(mm)220.36*139.1 mm (H*V)
Bezel Opening(mm)229.46*149.2 mm (H*V)Overall Depth(mm)2.98/4.96 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio16:10 (H:V)OrientationLandscape type
Mounting :Without
Other Detail :Weight187g (Max.)TreatmentHard coating, Reflection 1.5% (Max.)



4.AUO G101EVN01.0 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :3.4W (Max.)


5.AUO G101EVN01.0  Interface Detail

Signal Electrical :Input Current170/245mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.56/0.8W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6-bit)
Logic Voltage for Signals :-
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JAEHD1S040HA10.5mm40pins1 pcsLVDS-40P1C6B-060A


6.AUO G101EVN01.0 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life25K(Typ.) (Hours)
Driver Electrical :Voltage Input5.5/12.0V (Min./Max.)Current Input217mA (Max.)
Consumption2.6W (Max.)
Interface Features :Position-TypeIncluded in panel signal interface
Backlight Driver :With LED Driver


7.AUO G101EVN01.0 Packing Details

Package Box :AmountSize (L*W*H)Weight
40pcs / box484*328*257 mm9.2 Kgs
