G101EVN01.3 AUO 10.1" 1280x800 800nits LCD Panel | Sunlight Readable Industrial Display

G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel
G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel
G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel
  • G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel
  • G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel
  • G101EVN01.3 AUO 10.1` 1280x800 800nits LCD Panel

G101EVN01.3 AUO 10.1" 1280x800 800nits LCD Panel | Sunlight Readable Industrial Display

Original AUO G101EVN01 3 10 1-inch TFT LCD with 1280×800 resolution and 800nits high brightness IP65-rated sunlight readable display for outdoor kiosks, marine equipment, and aviation HMI Request samples and OEM pricing

Model G101EVN01.3
Brand AUO
Size 10.1inch
Resolution 1280*800
Brightness 500 cd/m² (Typ.)
Perspective 85/85/85/85
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Upcoming shutdown
Click For Price

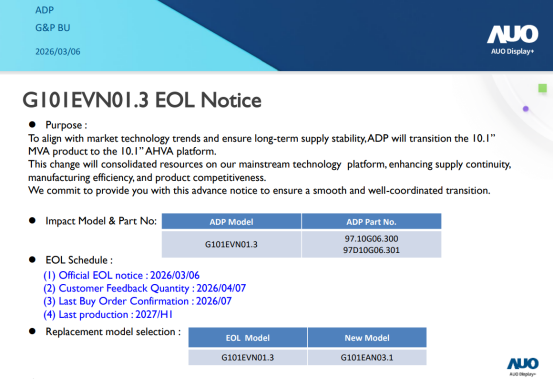

G101EVN01.3 is about to be discontinued.  Official EOL notice :2026/03/06,  Last Buy Order Confirmation : 2026/07. Customers are requested to prepare in advance. The compatible alternative model is G101EAN03.1.

1.AUO G101EVN01.3 Application Details

Basic Detail :ManufacturerAUOModel NameG101EVN01.3
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size10.1inchDesigned ForIdustrial
Maximum Ratings :OP Temperature-20~ 70°CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，Life>=50K hours, With LED Driver， Reverse I/F，6/8bit，


2.AUO G101EVN01.3 Optical Details

Basic Information :Luminance500cd/m² (Typ.)Contrast Ratio1300:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeMVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color262K/16.7M (6-bit / 8-bit)
Color Temperature6485KWhite Variation1.33/1.54 (Typ./Max.)(5 points)
1931 Color Gamlt :NTSC Ratio47%sRGB66% coverage
Adobe RGB49% coverageDCI-P349% coverage
Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO G101EVN01.3 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.0565*0.1695 mmPixel Pitch(W*H)0.1695*0.1695 mm  [149PPI]
Physical Size :Active Viewing(mm)216.96(W)*135.6(H) mmOutline Dim.(mm)227.91(W)*148(H) mm
Bezel Opening(mm)220.36(W)*139.1(H) mmOverall Depth(mm)8.34 (Max.) mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio16:10 (H:V)OrientationLandscape type
Mounting :Without
Other Detail :Weight350g (Max.)TreatmentHard coating, Reflection 1.5% (Typ.)


4.AUO G101EVN01.3 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :4.32W (Typ.)


5.AUO G101EVN01.3 Interface Detail

Signal Electrical :Input Current192/270mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.63/0.89W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSFH41-40S-0.5SH(05)0.5mm40pins1 pcs


6.AUO G101EVN01.3 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange-Lamp Shape-Lamp Life50K(Typ.) (Hours)
Driver Electrical :Voltage Input12.0±1.2VCurrent Input300/480mA (Typ./Max.)
Consumption3.6/5.76W (Typ./Max.)
Interface Features :Position-TypeConnector
Backlight Driver :With LED Driver


7.AUO G101EVN01.3 Packing Details

Package Box :AmountSize (L*W*H)Weight
44pcs / box450*375*320mm-
