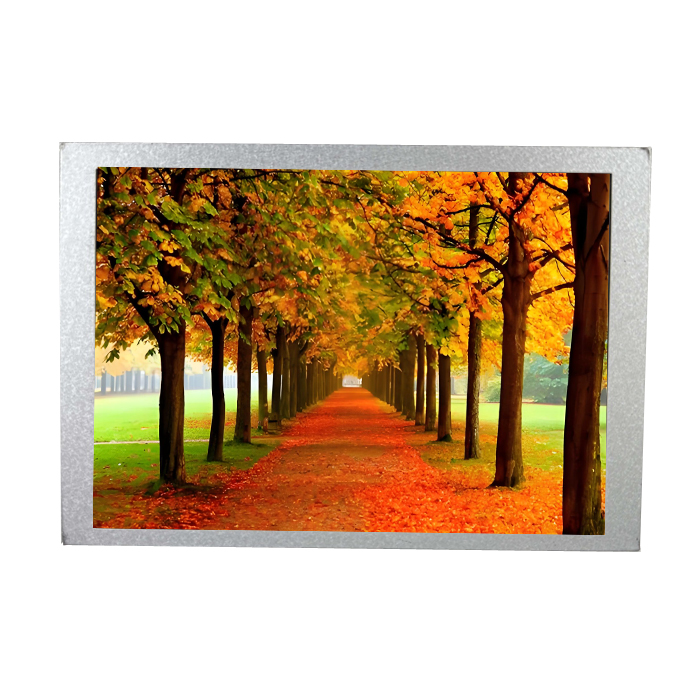

G084XAN01.0 Detailed Technical Analysis of AU 8.4-inch 1024x768 LCD Screen
G084XAN01 0 is an 8 4-inch industrial grade LCD screen launched by AU Optronics (AUO), which can be regarded as a high-resolution advanced version of G084SAN01 0 It increases the resolution from SVGA (800x600) to XGA (1024x768),
G084XAN01.0 is an 8.4-inch industrial grade LCD screen launched by AU Optronics (AUO), which can be regarded as a high-resolution advanced version of G084SAN01.0. It increases the resolution from SVGA (800x600) to XGA (1024x768), while enhancing the brightness to 500 cd/m ². It is a high-end industrial panel that combines full viewing angle, high brightness, and ultra wide temperature characteristics, especially suitable for scenes that are visible under sunlight and require more details to be displayed.
The following is a detailed technical parameter table compiled based on the official specification sheet date sheet of G084XAN01.0:
Detailed technical specifications (G084XAN01.0)
Parameter category | Detailed Specifications | Technical Interpretation |
G084XAN01.0 Basic Information | ||
Brand Model | The new model launched by AU Optronics in 2023 is currently in mass production | |
Size | 8.4 INCH | |
Resolution | 1024×768 (XGA) | The pixel count is 1.64 times that of G084SAN01.0 (SVGA), significantly improving the image's delicacy |
Pixel density | 152 PPI | A higher PPI means sharper image edges, suitable for displaying complex curves or high-definition images |
G084XAN01.0 optical properties | ||
Display technology | AHVA (IPS type) | AU independently developed wide viewing angle technology, with an 8.4-inch screen that maintains full viewing angle and no color distortion at any angle |
Full perspective | 89/89/89/89° (CR≥10) | Approaching the limit of "full view", viewing from any angle without color distortion or grayscale reversal |
Brightness | 500 cd/m² (Typ.) | Core selling points. Higher than G084SAN01.0 (450 cd/m ²) |
Contrast | 800:1 (Min.) | High contrast ensures a deeper black field |
Display color | 262K/16.7M (6-bit / 8-bit) | Supports 8-bit display with smooth color transitions |
Response time | 15/10 ms (Tr/Td) | Conventional speed, sufficient to meet the interaction requirements of industrial HMI (Human Machine Interface) |
Color gamut | NTSC 74% / sRGB 99% | Wide color gamut. SRGB coverage is close to professional monitors, with extremely strong color reproduction ability |
G084XAN01.0 Mechanical structure | ||
Overall dimensions | 199.5(W) × 149(H) mm | Narrower and longer than G084SAN01.0, but with a similar display area |
Display area | 170.496(W) × 127.872(H) mm | |
Thickness | 5.98 / 9.55 mm (Typ./Max.) | Design thin and light |
Surface treatment | Foggy surface, hard coating (3H) | Anti glare treatment reduces reflection interference under strong light |
G084XAN01.0 Electrical and Interface | ||
Signal interface | LVDS (1 ch, 6/8-bit) | Industrial standard interface, consistent with G084SAN01.0, good hardware compatibility |
Input voltage | 3.3V (Typ.) | Standard Logic Voltage |
Backlight type | WLED， Side entry type | |
Backlight driver | Built in LED driver | Simplify system design by directly inputting 12V to light up the backlight |
G084XAN01.0 Reliability index | ||
Operating Temperature | -30 ~ 80 °C | Military grade wide temperature range, stable operation in extremely cold regions or high-temperature equipment warehouses |
Storage temperature | -30 ~ 85 °C | |
Backlight life | 70000 hours (Min.) | 40% longer than a regular screen, running 24/7 for about 8 years |
Anti vibration ability | 1.5G (14.7 m/s²) | Suitable for vibration environments such as vehicles and construction machinery |
G084XAN01.0 Technical Highlights and Selection Advantages
1. G084XAN01.0 Extreme "Three Highs" Characteristics (High Brightness, High Definition, High Picture Quality)
This is the biggest leap for G084XAN01.0 compared to the previous generation (SAN series).
High brightness: With a brightness of 500 cd/m ², it can accommodate semi outdoor environments (such as well lit workshops, outdoor equipment) and even some outdoor scenes (such as bus stops, agricultural machinery) without the need for additional brightening films.
High resolution: XGA (1024x768) resolution is achieved on an 8.4-inch square screen. If you need to display complex medical images, PCB inspection diagrams, or detailed industrial process diagrams, higher resolution means less page scrolling and clearer details.
High color gamut: 99% sRGB coverage gives this screen a unique advantage in fields with strict requirements for color reproduction, such as medical imaging diagnosis and printing color calibration.
2. Ultimate industrial grade durability
Ultra long lifespan: The backlight lifespan of 70000 hours far exceeds the industry average (usually 50000 hours), which can significantly reduce maintenance costs in unmanned industrial control scenarios around the clock.
-30 ° C Extreme Cold Startup: This screen can work normally in an environment of minus 30 degrees Celsius, solving the pain points of slow startup, residual images or black screens of ordinary LCD screens in cold regions. High speed rail and cold storage transport vehicles are ideal choices for cold regions.
G084XAN01.0 Precautions and Selection Suggestions
Resolution adaptation: The screen resolution of G084XAN01.0 is 1024x768. If your old device originally used an 800x600 screen (such as G084SAN01.0), directly replacing it will cause the display screen to shrink or only display a partial area. You must confirm that your motherboard and software drivers support XGA output.
Interface hardware compatibility: Although the signal interface is LVDS (usually 40 pin), high-resolution screens require the motherboard to provide a higher clock frequency. It is recommended to check whether the LVDS output capability of the motherboard is supported before replacement 1024x768@60Hz .
Touch and installation: G084XAN01.0 does not come with touch function by default, and there are no reserved installation holes for standard shipping. It needs to be fixed by the device structure frame. If touch control is required, an additional touch screen can be purchased and attached to the touch screen (supporting resistive or capacitive).
Cost positioning: Due to its 700nit high brightness, high resolution, and ultra wide temperature range, its price positioning belongs to high-end industrial screens. If your device is only used indoors at room temperature and does not require high resolution, choosing G084SAN01.0 will be more economical.
