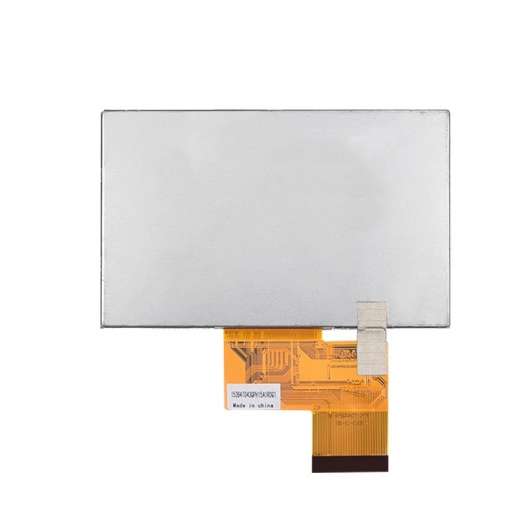

4.3-inch LCD module features a TN panel with a high-color-depth RGB888 interface, supporting full 24-bit color. The IDT-G043QPH-15 is designed for applications requiring true color accuracy at an economical price point, suitable for consumer electronics interfaces and specific industrial monitoring systems.
| Model | IDT-G043QPH-15 |
| Brand | IDT |
| Size | 4.3inch |
| Resolution | 480*272 |
| Brightness | 300cd/m2 |
| Perspective | 12 o'clock |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
4.3-inch TN LCD Screen IDT-G043QPH-15:
Feature
Specification
Model
IDT-G043QPH-15
Brand
IDT
Size
4.3inch
Resolution
480*272
Pixel pitch
0.198(H)x0.198(V)
Display Mode
TN/NW
Viewing Direction
12 o'clock
Gray Scale Inversion Direction
6 o'clock
28
300 cd/m2
LCM (W * H * D)
105.50*67.20*3.00mm
Active Area (W * H )
95.04*53.86mm
With /Without TP
Without TP
LED Numbers
10S-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
RGB888/40PIN
LCM Power Supply
3.3V
LED Power Supply
30 V
Color Depth
16.7M
LCM Driver IC
ILI6480
