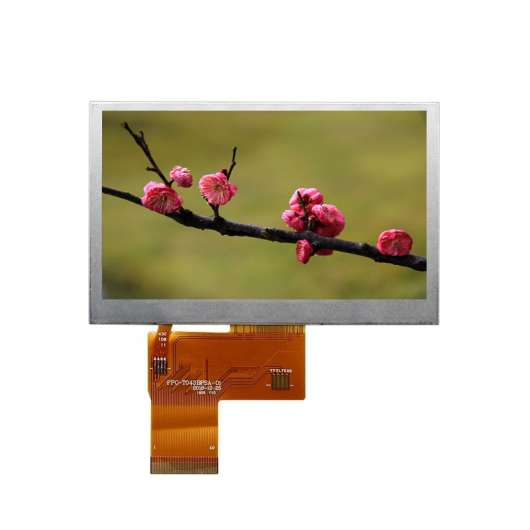

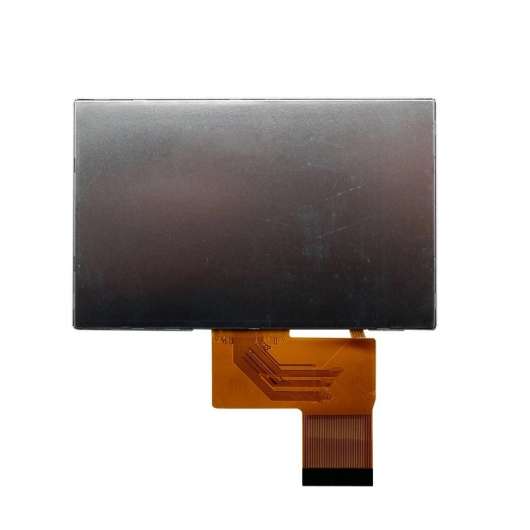

IDT-G043BWSA-04 is a high-quality 4.3-inch TFT LCD module featuring a Full View IPS panel with 800x480 resolution. This combination ensures excellent readability and color performance for applications such as medical monitors, handheld test instruments, and premium IoT interfaces.
| Model | IDT-G043BWSA-04 |
| Brand | IDT |
| Size | 4.3inch |
| Resolution | 800*480 |
| Brightness | 380cd/m² |
| Perspective | 80/80/80/80 |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
4.3-inch 800 * 480 full view IPS LCD screen IDT-G043BWSA-04:
Feature
Specification
Model
IDT-G043BWSA-04
Brand
IDT
Size
4.3inch
Resolution
800*480
Pixel pitch
0.1188(H)*0.1122(V)
Display Mode
IPS/NB
Viewing Direction
ALL o'clock
Gray Scale Inversion Direction
ALL o'clock
28
380 cd/m2
LCM (W * H * D)
105.50*67.20*3.00 mm
Active Area (W * H )
95.04*53.86mm
With /Without TP
Without TP
LED Numbers
4S2P-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
RGB888
LCM Power Supply
3.3V
LED Power Supply
12v
Color Depth
16.7M
LCM Driver IC
ST7262E43
