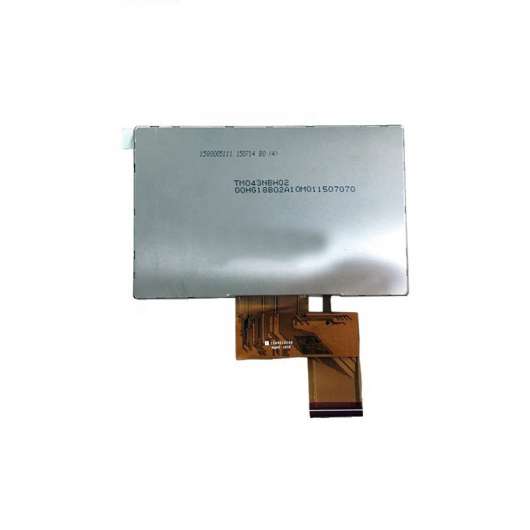

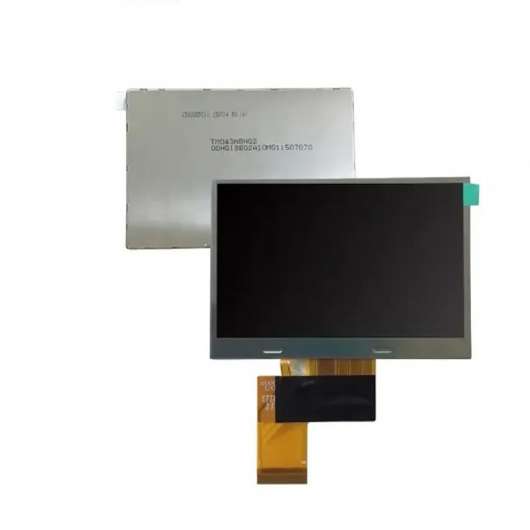

Name: Tianma Original TM043NDH02 4.3" TN LCM LCD Module 480*272 300nits WLED TTL
Brand: Tianma
SKU: TM043NDH02

Tianma Original TM043NDH02 4.3" TN LCM LCD Module 480*272 300nits WLED TTL

TIANMA TM043NDH02 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM043NDH02Panel Typea-Si TFT-LCD , LCMAno

Model	TM043NDH02
Brand	TIANMA
Size	4.3inch
Resolution	480*272
Brightness	300 cd/m²
Perspective	70/70/70/50 (Typ.)
Interface	RGB
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Click For Price

TIANMA TM043NDH02 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM043NDH02
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	4.3”	Designed For	Portable Navigation，MP3 PMP
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight,Matte

TIANMA TM043NDH02 Optical Details

Basic Information :	Luminance	300 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	20 (Typ.)(Tr+Td) ms
	Viewing Angle	70/70/70/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.315; Y:0.335	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6337K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	50%	sRGB	70% coverage
	Adobe RGB	53% coverage	DCI-P3	52% coverage
	Rec.2020	38% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM043NDH02 Mechanical Details

Pixel Features :	Number of Pixel	480(RGB)*272, WQVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W×H)	0.0660.198 (HV)	Pixel Pitch (W*H)	0.198*0.198mm [128PPI]
Physical Size :	Active Viewing(mm)	95.04(H) *53.856(V)	Bezel Area (mm)	99.656.7 mm (HV)
Physical Size :	Outline Dim.(mm)	105.5(H) *67.2(V)	Depth(mm)	2.9±0.3 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Other Spec :	Weight	44.1g	Surface	Antiglare, Hard coating (3H)

TIANMA TM043NDH02 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	Built-in HX8257A
Time Controller (T-CON)：	Embedded T-CON

TIANMA TM043NDH02 Interface Details

Signal Systerm :		Parallel RGB (1 ch, 8-bit)				Logic Voltage				0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		-
	Consumption			74.0mW (Typ.)
Interface Features :	Position			-			Physical Type		FPC
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
					0.5mm			40pins	1 pcs

TIANMA TM043NDH02 Backlight Details

Lamp Features :	Lamp Type	WLED	Quantity	5S2P	Position	Edge light type
Lamp Features :	Exchange	-	Lamp Shape	Array	Lamp Life	20K(Typ.) (Hours)
Lamp Electrical :	Input Voltage	16V (Typ.)	Input Current	40mA (Typ.)
Lamp Electrical :	Consumption	640mW (Typ.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TM043NDH02 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	112 pcs / box	TBD	530350250 mm
