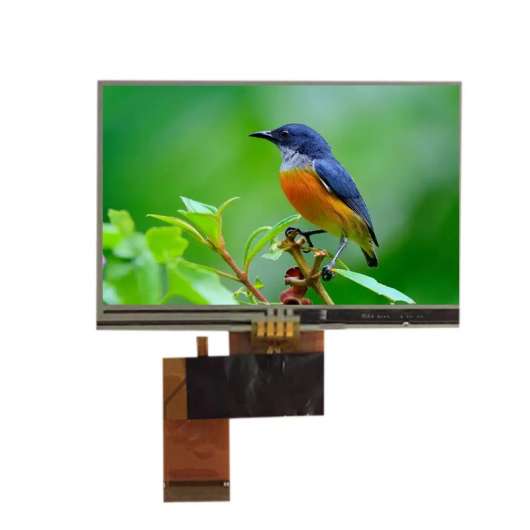

Tianma 4.3 inch 480x272 TFT LCD Module Displays TM043NBH02 with touch screen

Tianma 4.3 inch 480x272 TFT LCD Module Displays TM043NBH02 with touch screen

TIANMA TM043NBH02 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM043NBH02Panel Typea-Si TFT-LCD , LCMAno

Model TM043NBH02
Brand TIANMA
Size 4.3inch
Resolution 480*272
Brightness 280cd/m2
Perspective 70/70/70/50 (Typ.)
Interface RGB
Operating Temp -20 ~ 60 °C
Production State Discontinued
Click For Price

TIANMA TM043NBH02 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM043NBH02
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.3”Designed ForIndustrial，Portable Navigation，MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 60  °CST Temperature-30 ~ 70  °C
RoHSRoHSVibration Level
Features :With Touch, WLED Backlight


TIANMA TM043NBH02 Optical Details

Basic Information :Luminance280 cd/m² (Typ.)Contrast Ratio450:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20 (Typ.)(Tr+Td) ms
Viewing Angle70/70/70/50 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.315; Y:0.328Display Colors16.7M (6-bit + Hi-FRC)
Color Temperature6386KWhite Variation1.33 (Max.)(9 points)
1931 Color Gamlt :NTSC Ratio48%sRGB67% coverage
Adobe RGB50% coverageDCI-P350% coverage
Rec.202036% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM043NBH02 Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272, WQVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.066*0.198 (H*V)Pixel Pitch (W*H)0.198*0.198mm [128PPI]
Physical Size :Active Viewing(mm)95.04(H) *53.856(V)Bezel Area (mm)98.3(H) *57.1(V)
Outline Dim.(mm)105.5(H) * 67.2(V)Depth(mm)4.1±0.3
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationPortrait type
Touch Panel :Touch Points1 pointTouch Panel4-wire Resistive Touch
TP ControllerWithout touch controllerTouch Signal-
Other Spec :Weight58.4gSurfaceHard coating(3H)


TIANMA TM043NBH02 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :COG Built-in HX8257A
Time Controller (T-CON)：Embedded T-CON


TIANMA TM043NBH02 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :Voltage Input1.8/2.8V (Typ.)(IOVCC/VCI)Current Input-
Consumption-
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


TIANMA TM043NBH02 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S2PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage16/18V (Typ./Max.)Input Current40/50mA (Typ./Max.)
Consumption640mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


TIANMA TM043NBH02 Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / box9.77±0.49 Kgs530*350*250 mm
