TIANMA 7" WVGA LCD Panel - TM070RDH10-20 800×480 RGB Interface

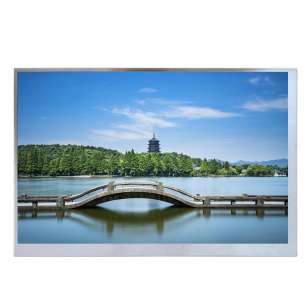

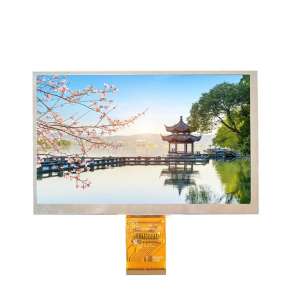

TIANMA TM070RDH10-20 7-inch TFT LCD panel
TIANMA TM070RDH10-20 7-inch TFT LCD panel
TIANMA TM070RDH10-20 7-inch TFT LCD panel
  • TIANMA TM070RDH10-20 7-inch TFT LCD panel
  • TIANMA TM070RDH10-20 7-inch TFT LCD panel
  • TIANMA TM070RDH10-20 7-inch TFT LCD panel

TIANMA 7" WVGA LCD Panel - TM070RDH10-20 800×480 RGB Interface

Original TIANMA TM070RDH10-20 7-inch TFT LCD panel with 800×480 WVGA resolution and RGB interface Industrial-grade (-20°C~70°C) for HMI, medical and automation equipment Request OEM pricing now

Model TM070RDH10-20
Brand TIANMA
Size 7.0inch
Resolution 800×480
Brightness 350 cd/m² (Typ.)
Perspective 70/70/60/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 7" LCD Display TM070RDH10-20 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM070RDH10-20
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size7.0”Designed ForIndustrial，Digital Photo Frame，Portable DVD Player
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80°C
RoHSRoHSVibration Level
Features :WLED Backlight,U/D,L/R Reverse，6/8bit，Matte


2.TIANMA 7" LCD Display TM070RDH10-20  Optical Details

Basic Information :Luminance350 cd/m² (Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clock Response Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.315; Wy:0.330Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature6371KWhite Variation1.33 (Typ.)(9 points)
1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
Adobe RGB52% coverageDCI-P352% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 7" LCD Display TM070RDH10-20 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0642*0.1790 mm (H*V)Pixel Pitch (W*H)0.1926*0.1790 mm (H*V)  [134PPI]
Physical Size :Active Viewing(mm)154.08*85.92 mm (H*V)Bezel Area (mm)157.08*89.39 mm (H*V)
Outline Dim.(mm)164.9*100 mm (H*V)Depth(mm)5.7±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Fixation :Without
Other Spec :WeightTBDSurfaceAntiglare


4.TIANMA 7" LCD Display TM070RDH10-20 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Time Controller (T-CON) :Embedded T-CON


5.TIANMA 7" LCD Display TM070RDH10-20 Interface Details

Signal Systerm :Parallel RGB (1 ch, 6/8-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)
Consumption-
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm50pins1 pcsDRGB-50P1C8B-115A


6.TIANMA 7" LCD Display TM070RDH10-20 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S8PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Current160/200mA (Typ./Max.)Input Voltage9.6/10.8V (Typ./Max.)
Consumption1.54/2.16W (Typ./Max.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 7" LCD Display TM070RDH10-20 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
50 pcs / boxTBD530*350*250 mm
