TIANMA 7" 1024×600 LCD Panel - TM070DDH03 RGB for Electric Power

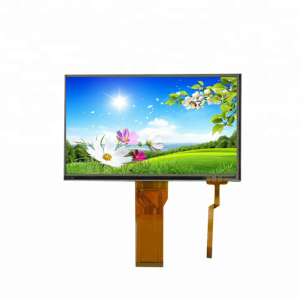

TIANMA TM070DDH03 7-inch TFT LCD

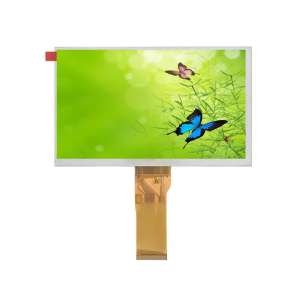

TIANMA TM070DDH03 7-inch TFT LCD

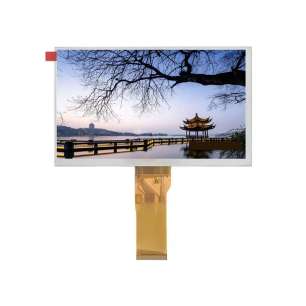

  • TIANMA TM070DDH03 7-inch TFT LCD
  • TIANMA TM070DDH03 7-inch TFT LCD

TIANMA 7" 1024×600 LCD Panel - TM070DDH03 RGB for Electric Power

Original TIANMA TM070DDH03 7-inch TFT LCD with 1024×600 resolution, RGB interface & industrial-grade durability Specially designed for electric power systems, HMI and control panels Request technical specs

Model TM070DDH03
Brand TIANMA
Size 7.0inch
Resolution 1024*600
Brightness 320 cd/m² (Typ.)
Perspective 75/75/70/75 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 7" LCD Display TM070DDH03  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM070DDH03
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size7.0”Designed ForPad&Table，Netbook PC,Industrial，MID UMPC,MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80°C
RoHSRoHSVibration Level
Features :WLED Backlight,U/D,L/R Reverse，6/8bit，Matte


2.TIANMA 7" LCD Display TM070DDH03  Optical Details

Basic Information :Luminance320 cd/m² (Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed20 (Typ.)(Tr+Td) (ms)
Viewing Angle75/75/70/75 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature6869KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio51%sRGB71% coverage
Adobe RGB54% coverageDCI-P353% coverage
Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 7" LCD Display TM070DDH03 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*600 [WSVGA]ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.050*0.150 mm (H*V)Pixel Pitch (W*H)0.150*0.150 mm (H*V)  [169PPI]
Physical Size :Active Viewing(mm)153.6*90 mm (H*V)Bezel Area (mm)156.2*92.6 mm (H*V)
Outline Dim.(mm)165.75*105.39 mm (H*V)Depth(mm)3.4±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio17:10 (H:V)OrientationLandscape type
Fixation :Without
Other Spec :Weight112g (Typ.) SurfaceAntiglare


4.TIANMA 7" LCD Display TM070DDH03  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :1.543W (Typ.)


5.TIANMA 7" LCD Display TM070DDH03  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage
Signal Electrical :Voltage Input3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)Current Input16/33/0.4/0.4mA (Typ.)(IDD/IAVDD/IGH/IGL)
Consumption426.5/646.1mW (Typ./Max.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcsLVDS-40P1C8B-050A


6.TIANMA 7" LCD Display TM070DDH03 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S6PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life15K(Min.) (Hours)
Lamp Electrical :Input Current120mA (Typ.)Input Voltage9.3V (Typ.)
Consumption1.116W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 7" LCD Display TM070DDH03 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
50 pcs / box8.826 Kgs530*350*250 mm
