Original TM050RDZG03-00 5" TFT LCD Screen - 800×480 WVGA, WLED Backlight Display

TM050RDZG03-00 5inch TFT LCD Screen
TM050RDZG03-00 5inch TFT LCD Screen
  • TM050RDZG03-00 5inch TFT LCD Screen
  • TM050RDZG03-00 5inch TFT LCD Screen

Original TM050RDZG03-00 5" TFT LCD Screen - 800×480 WVGA, WLED Backlight Display

New original stock TM050RDZG03-00 5-inch TFT LCD module with 800×480 WVGA resolution and WLED backlight High-quality display for industrial control, medical equipment, and portable devices

Model TM050RDZG03-00
Brand TIANMA
Size 5.0inch
Resolution 800*480
Brightness 1000 cd/m² (Typ.)
Perspective 80/80/70/80 (Typ.)
Interface RGB
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1.TIANMA 5" TFT LCD TM050RDZG03-00 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM050RDZG03-00
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size5.0”Designed ForIndustrial
Maximum Ratings :OP Temperature-30 ~ 85°CST Temperature-40 ~ 90 °C
RoHSRoHSVibration Level
Features :Wide Temperature，Ultra High Brightness，WLED Backlight，Life>=50K hours,Matte


2.TIANMA 5" TFT LCD TM050RDZG03-00 Optical Details

Basic Information :Luminance1000 cd/m² (Min.)Contrast Ratio750:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed20/30 (Typ./Max.)(Tr+Td) ms
Viewing Angle80/80/70/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.318; Wy:0.352Display Colors16.7M (8-bit)
Color Temperature6101KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio56%sRGB76% coverage
Adobe RGB58% coverageDCI-P358% coverage
Rec.202042% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmittance-


3.TIANMA 5" TFT LCD TM050RDZG03-00  Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.045*0.135 (H*V)Pixel Pitch (W*H)0.135*0.135 (H*V)  [188PPI]
Physical Size :Active Viewing(mm)108(H) *64.8(V)Bezel Area (mm)111.1*67.9 mm (H*V)
Outline Dim.(mm)132.7*77.8 mm (H*;V)Depth(mm)5.7±0.2 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio15:9 (H:V)OrientationLandscape type
Holes & Brackets :Face mounting holes (4-Φ3.2) on left, right slugs
Other Spec :Weight-SurfaceAntiglare


4.TIANMA 5" TFT LCD TM050RDZG03-00  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


5.TIANMA 5" TFT LCD TM050RDZG03-00 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


6.TIANMA 5" TFT LCD TM050RDZG03-00 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S6PPositionEdge light type
Exchange
-		Lamp Shape6 stringsLamp Life50K(Typ.) (Hours)
Lamp Electrical :Input Voltage9.3V (Typ.)Input Current175mA (Typ.)
Consumption1.63W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 5" TFT LCD TM050RDZG03-00 Carton Details

Package Box :AmountWeightSize (L*W*H)
72 pcs / box-395*290*315 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Tianma 5 inch TFT LCD screen TM050RDH03-41 with 800*480 WVGA and RGB interface l Original Tianma TM050RBH01 5" LCD Display Module – 800×480 WVGA, 300nits, RGB Interface

Related Products

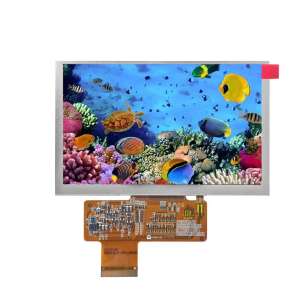

Tianma 5 inch TFT LCD screen TM...
