Tianma 5 inch TFT LCD screen TM050RDH03-41 with 800*480 WVGA and RGB interface l

Tianma 5 inch TFT LCD screen TM050RDH03-41
Tianma 5 inch TFT LCD screen TM050RDH03-41
Tianma 5 inch TFT LCD screen TM050RDH03-41
  • Tianma 5 inch TFT LCD screen TM050RDH03-41
  • Tianma 5 inch TFT LCD screen TM050RDH03-41
  • Tianma 5 inch TFT LCD screen TM050RDH03-41

Tianma 5 inch TFT LCD screen TM050RDH03-41 with 800*480 WVGA and RGB interface l

Genuine Tianma TM050RDH03-41 5-inch TFT LCD with 800×480 WVGA resolution & RGB interface Ideal for industrial HMI, medical devices Worldwide shipping

Model TM050RDH03-41
Brand TIANMA
Size 5.0inch
Resolution 800*480
Brightness 250cd/m²
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA 5" TFT LCD TM050RDH03-41 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM050RDH03-41

Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size5.0”Designed ForIndustrial，Portable Navigation，MP3 PMP，MID UMPC
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level
Features :WLED Backlight，Matte


2.TIANMA 5" TFT LCD TM050RDH03-41 Optical Details

Basic Information :Luminance250 cd/m² (Min.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed20(Typ.)(Tr+Td) ms
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Display Colors16.7M (8-bit)
Color Temperature6638KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio49%sRGB69% coverage
Adobe RGB52% coverageDCI-P351% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 5" TFT LCD TM050RDH03-41  Mechanical Details

Pixel Features :Number of Pixel800(RGB)×480, WVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.045*0.135 (H*V)Pixel Pitch (W*H)0.135*0.135 (H*V)  [188PPI]
Physical Size :Active Viewing(mm)108(H) *64.8(V)Bezel Area (mm)111.1(H) * 67.9(V)
Outline Dim.(mm)120.7(H) * 75.8(V)Depth(mm)3.10 (Max.)
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio15:9 (H:V)OrientationLandscape type
Other Spec :Weight57.0g (Typ.)SurfaceAntiglare, Hard coating (3H)


4.TIANMA 5" TFT LCD TM050RDH03-41  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Time Controller (T-CON)：Embedded T-CON


5.TIANMA 5" TFT LCD TM050RDH03-41 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :Voltage Input 3.3V (Typ.)Current InputTBD
Interface Features :Position297mW (Typ.)Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


6.TIANMA 5" TFT LCD TM050RDH03-41 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity7S2PPositionEdge light type
Exchange-Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage21.7V (Typ.)Input Current40mA (Typ.)
Consumption868mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 5" TFT LCD TM050RDH03-41 Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / box9.85 Kgs530*350*250 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
First Page Original TM050RDZG03-00 5" TFT LCD Screen - 800×480 WVGA, WLED Backlight Display

Related Products

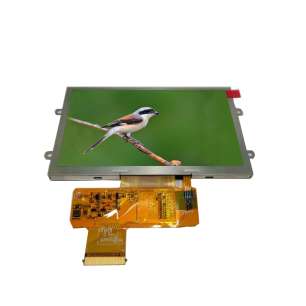

Original TM050RDZG03-00 5" TFT LC...

Original TM050RDZG03-00 5" ...

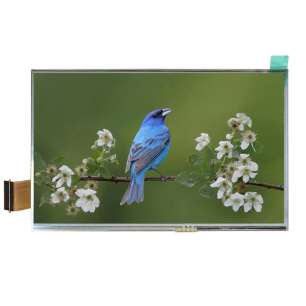

Original Tianma TM050RBH01 5" LCD...

Original Tianma TM050RBH01 ...

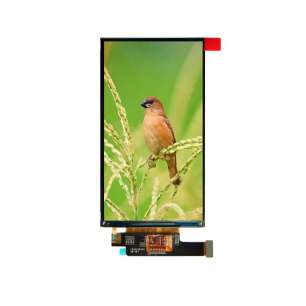

Original Tianma TM050JDHG33 5" IP...
