Original Tianma 4.7-inch TM047NDH04 TFT LCD Display - Parallel RGB Interface | High-Quality Panel

Tianma 4.7-inch TM047NDH04 TFT LCD Display
Tianma 4.7-inch TM047NDH04 TFT LCD Display
  • Tianma 4.7-inch TM047NDH04 TFT LCD Display
  • Tianma 4.7-inch TM047NDH04 TFT LCD Display

Original Tianma 4.7-inch TM047NDH04 TFT LCD Display - Parallel RGB Interface | High-Quality Panel

Buy genuine Tianma TM047NDH04 4 7-inch TFT LCD display with Parallel RGB interface High brightness, wide viewing angles, and reliable performance for industrial & embedded applications In stock !

Model TM047NDH04
Brand TIANMA
Size 4.7inch
Resolution 480*270
Brightness 250 cd/m² (Min.)
Perspective 70/70/60/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 4.7" TFT LCD TM047NDH04  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM047NDH04
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.7”Designed ForPortable Navigation，MP3
Maximum Ratings :OP Temperature-20 ~ 70 °C ST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，Glossy


2.TIANMA 4.7" TFT LCD TM047NDH04  Optical Details

Basic Information :Luminance250 cd/m²(Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed20(Typ.)(Tr+Td) ms
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.320Display Colors16.7M (8-bit)
Color Temperature6737KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio51%sRGB72% coverage
Adobe RGB54% coverageDCI-P353% coverage
Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 4.7" TFT LCD TM047NDH04  Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272, WQVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.072*0.216 mm (H*V)Pixel Pitch (W*H)0.216*0.216 mm (H*V)  [117PPI]
Physical Size :Active Viewing(mm)103.68*58.752 mm (H*V)Bezel Area (mm)104.68*59.75 mm (H*V)
Outline Dim.(mm)114.3*72.5 mm (H*V)Depth(mm)3.3±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Other Spec :Weight115gSurfaceGlare (Haze 0%), Hard coating (3H)


4.TIANMA 4.7" TFT LCD TM047NDH04  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Time Controller (T-CON)：Embedded T-CON


5.TIANMA 4.7" TFT LCD TM047NDH04 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
Interface Features :Position85/90mW (Typ./Max.)Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


6.TIANMA 4.7" TFT LCD TM047NDH04 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S2PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage16V (Typ.)Input Current40/50mA (Typ./Max.)
Consumption640mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 4.7" TFT LCD TM047NDH04  Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / box11.5±0.057 Kgs530*350*250 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Original Tianma TM047NDH02 4.7-inch TFT LCD Screen – 480×272 WQVGA, 330 Nits, RGB Interface TM047NBH03 4.7" TFT LCD | 480×272 | 4-Wire Resistive Touch Screen

Related Products

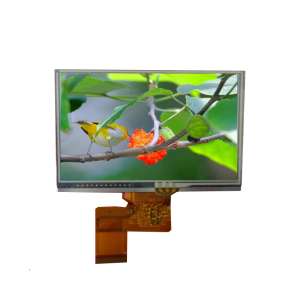

Original Tianma TM047NDH02 4.7-inc...

Original Tianma TM047NDH02 ...

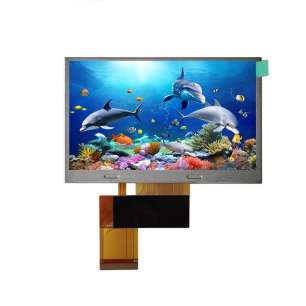

TM047NBH03 4.7" TFT LCD | 480×2...
