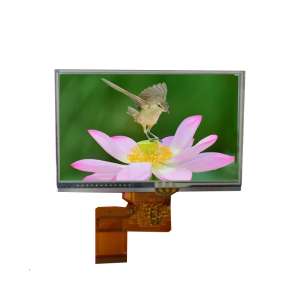

Original Tianma TM047NDH02 4.7-inch TFT LCD Screen – 480×272 WQVGA, 330 Nits, RGB Interface

Original Tianma TM047NDH02 4.7-inch TFT LCD Screen
Original Tianma TM047NDH02 4.7-inch TFT LCD Screen
  • Original Tianma TM047NDH02 4.7-inch TFT LCD Screen
  • Original Tianma TM047NDH02 4.7-inch TFT LCD Screen

Original Tianma TM047NDH02 4.7-inch TFT LCD Screen – 480×272 WQVGA, 330 Nits, RGB Interface

Genuine Tianma TM047NDH02 4 7-inch WQVGA (480×272) TFT LCD module with RGB interface & 330 nits brightness Ideal for industrial HMI, medical devices, and embedded systems Fast shipping & competitive pricing

Model TM047NDH02
Brand TIANMA
Size 4.7inch
Resolution 480*272
Brightness 330cd/m²
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 60 °C
Production State Discontinued
Click For Price

1.TIANMA 4.7" TFT LCD TM047NDH02  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM047NDH02
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.7”Designed ForPortable Navigation，MP3
Maximum Ratings :OP Temperature-20 ~ 60  °C ST Temperature-30 ~ 70  °C
RoHSRoHSVibration Level
Features :WLED Backlight


2.TIANMA 4.7" TFT LCD TM047NDH02  Optical Details

Basic Information :Luminance330 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.320Display Colors16.7M (8-bit)
Color Temperature6802KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
Adobe RGB52% coverageDCI-P352% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 4.7" TFT LCD TM047NDH02  Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272, WQVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.072*0.216 mm Pixel Pitch (W*H)0.216*0.216 mm  [117PPI]
Physical Size :Active Viewing(mm)103.68*58.752 mm (H*V)Bezel Area (mm)106.28*61.35 mm (H*V)
Outline Dim.(mm)114.3*72.5 mm (H*V)Depth(mm)3.8 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Other Spec :WeightTBDSurfaceClear, Hard coating (3H)

4.TIANMA 4.7" TFT LCD TM047NDH02  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :Built-in HX8257
Time Controller (T-CON)：Embedded T-CON


5.TIANMA 4.7" TFT LCD TM047NDH02  Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage-0.3≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
Interface Features :Position85/90mW (Typ./Max.)Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm45pins1 pcs


6.TIANMA 4.7" TFT LCD TM047NDH02  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S2PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life-
Lamp Electrical :Input Voltage16V (Typ.)Input Current40/50mA (Typ./Max.)
Consumption640mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No



7.TIANMA 4.7" TFT LCD TM047NDH02  Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / box11.5 Kgs530*350*250 mm
