Original Tianma TM043NDH02 4.3" TN LCD Module | 480×272 WLED TTL Display 300nits Display

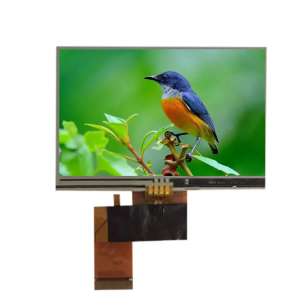

Genuine Tianma TM043NDH02 4 3-inch TN LCD module with 480×272 resolution, 300nits brightness, and WLED backlight TTL interface industrial display for embedded systems, medical equipment, and control panels

Model TM043NDH02
Brand TIANMA
Size 4.3inch
Resolution 480*272
Brightness 300 cd/m²
Perspective 70/70/70/50 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA TM043NDH02 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM043NDH02
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.3”Designed ForPortable Navigation，MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level
Features :WLED Backlight,Matte


2.TIANMA TM043NDH02 Optical Details

Basic Information :Luminance300 cd/m² (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20 (Typ.)(Tr+Td) ms
Viewing Angle70/70/70/50 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.315; Y:0.335Display Colors16.7M (8-bit)
Color Temperature6337K   White Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
Adobe RGB53% coverageDCI-P352% coverage
Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA TM043NDH02 Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272, WQVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.066*0.198 (H*V)Pixel Pitch (W*H)0.198*0.198mm [128PPI]
Physical Size :Active Viewing(mm)95.04(H) *53.856(V)Bezel Area (mm)99.6*56.7 mm (H*V)
Outline Dim.(mm)105.5(H) *67.2(V)Depth(mm)2.9±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Other Spec :Weight44.1gSurfaceAntiglare, Hard coating (3H)


4.TIANMA TM043NDH02 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :Built-in HX8257A
Time Controller (T-CON)：Embedded T-CON


5.TIANMA TM043NDH02 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :Voltage Input3.3V (Typ.)Current Input-
Consumption74.0mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


6.TIANMA TM043NDH02 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S2PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage16V (Typ.)Input Current40mA (Typ.)
Consumption640mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA TM043NDH02 Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / boxTBD530*350*250 mm
