Tianma TM043NBH02 4.3" TFT LCD with Touch Screen | 480×272 Display Module

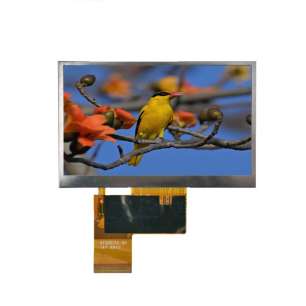

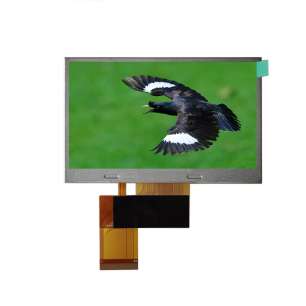

Original Tianma TM043NBH02 4 3-inch TFT LCD module featuring 480×272 resolution and integrated touch screen Ideal for industrial HMI, medical devices, and embedded systems requiring reliable touch display solutions

Model	TM043NBH02
Brand	TIANMA
Size	4.3inch
Resolution	480*272
Brightness	280cd/m2
Perspective	70/70/70/50 (Typ.)
Interface	RGB
Operating Temp	-20 ~ 60 °C
Production State	Discontinued

Click For Price

1.TIANMA 4.3" TFT LCD TM043NBH02 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM043NBH02
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	4.3”	Designed For	Industrial，Portable Navigation，MP3 PMP
Maximum Ratings :	OP Temperature	-20 ~ 60 °C	ST Temperature	-30 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	With Touch, WLED Backlight

2.TIANMA 4.3" TFT LCD TM043NBH02 Optical Details

Basic Information :	Luminance	280 cd/m² (Typ.)	Contrast Ratio	450:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	20 (Typ.)(Tr+Td) ms
	Viewing Angle	70/70/70/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.315; Y:0.328	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6386K	White Variation	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	48%	sRGB	67% coverage
	Adobe RGB	50% coverage	DCI-P3	50% coverage
	Rec.2020	36% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.TIANMA 4.3" TFT LCD TM043NBH02 Mechanical Details

Pixel Features :	Number of Pixel	480(RGB)*272, WQVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.0660.198 (HV)	Pixel Pitch (W*H)	0.198*0.198mm [128PPI]
Physical Size :	Active Viewing(mm)	95.04(H) *53.856(V)	Bezel Area (mm)	98.3(H) *57.1(V)
Physical Size :	Outline Dim.(mm)	105.5(H) * 67.2(V)	Depth(mm)	4.1±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Portrait type
Touch Panel :	Touch Points	1 point	Touch Panel	4-wire Resistive Touch
Touch Panel :	TP Controller	Without touch controller	Touch Signal	-
Other Spec :	Weight	58.4g	Surface	Hard coating(3H)

4.TIANMA 4.3" TFT LCD TM043NBH02 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Built-in HX8257A
Time Controller (T-CON)：	Embedded T-CON

5.TIANMA 4.3" TFT LCD TM043NBH02 Interface Details

Signal Systerm :		Parallel RGB (1 ch, 8-bit)				Logic Voltage				0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :	Voltage Input			1.8/2.8V (Typ.)(IOVCC/VCI)			Current Input		-
	Consumption			-
Interface Features :	Position			-			Physical Type		FPC
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
					0.5mm			40pins	1 pcs

6.TIANMA 4.3" TFT LCD TM043NBH02 Backlight Details

Lamp Features :	Lamp Type	WLED	Quantity	5S2P	Position	Edge light type
Lamp Features :	Exchange	-	Lamp Shape	Array	Lamp Life	20K(Typ.) (Hours)
Lamp Electrical :	Input Voltage	16/18V (Typ./Max.)	Input Current	40/50mA (Typ./Max.)
Lamp Electrical :	Consumption	640mW (Typ.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

7.TIANMA 4.3" TFT LCD TM043NBH02 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	112 pcs / box	9.77±0.49 Kgs	530350250 mm
