G080Y1-T01 Chimei Innolux 8" 800x480 TFT LCD | -30~85°C 500nits Industrial Display

Original Chimei Innolux G080Y1-T01 8 " TFT LCD 800x480, 600cd m²,TTL Extreme -30~85°C operation Arctic oil rig proven DDP shipping & MOQ 1pc Get free thermal stress report!

Model G080Y1-T01
Brand Chimei Innolux
Size 8.0inch
Resolution 800*480
Brightness 600cd/m2
Perspective 70/70/60/60 (Typ.)
Interface TTL
Operating Temp -30 ~ 85 °C
Production State Discontinued
Click For Price

1.Chimei Innolux 8" TFT LCD G080Y1-T01 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameG080Y1-T01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size8.0”Designed ForIndustrial,Automotive Display
Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-40 ~ 90 °C
RoHSRoHSVibration Level3.0G (29.4 m/s²)
Features :Wide Temperature，Hight Brightness,WLED Backlight，U/D,L/R Reverse,Matte,6/8bit


2.Chimei Innolux 8" TFT LCD G080Y1-T01 Optical Details

Basic Information :Luminance600 cd/m²(Typ.)Contrast Ratio600 : 1 (Typ.) (Transmissive)
Good View at-Response Speed5/11 (Typ.)(Tr/Td) ms
Viewing Angle70/70/60/60 (Typ.)(CR≥10) Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.315Display Colors262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :NTSC Ratio71%sRGB92% coverage
Adobe RGB71% coverageDCI-P374% coverage
Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux 8" TFT LCD G080Y1-T01 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.07225*0.21675 mmPixel Pitch (W*H)0.21675*0.21675 mm  [117PPI]
Physical Size :Active Viewing(mm)173.4(W)*104.04(H) mmBezel Area (mm)175.2(W)*105.84(H) mm
Outline Dim.(mm)190(W)*120(H) mmDepth(mm)5.06±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio15:9 (W:H)OrientationLandscape type
Other Spec :Weight172g (Typ.)SurfaceAntiglare, Hard coating (3H)


4.Chimei Innolux 8" TFT LCD G080Y1-T01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Total Consumption :3.97W (Typ.)
Time Controller (T-CON) :Embedded T-CON


5.Chimei Innolux 8" TFT LCD G080Y1-T01 Interface Details

Signal Electrical :Voltage Input3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)Current Input22.8/36.5/0.206/0.211mA (Typ.)(ICC/IDD/IGG/IEE)
Consumption-Signal InterfaceTTL (1 ch, 6/8-bit)
Logic Voltage :0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm60pins1 pcs


6.Chimei Innolux 8" TFT LCD G080Y1-T01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity9S3PPositionEdge light type (Bottom side)
Exchange
-		Lamp ShapeArrayLamp Life30K(Min.) (Hours)
Lamp Electrical :Input Voltage28.8/31.5V (Typ./Max.)Input Current120/130mA (Typ./Max.)
Consumption3.45W (Typ.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPitchPinsAmountPin Assignment
YEONHO35001HS-02L3.5 mm2 pins1 pcsBLE-2PINS-AC


7.Chimei Innolux 8" TFT LCD G080Y1-T01 Carton Details

Package Box :AmountWeightSize (L*W*H)
40 pcs / box9.9 Kgs465*362*314 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
EJ080NA-05B INNOLUX 8" RGB TFT LCD | Innolux 800x600 SVGA Panel - 50pin Industrial Last Page

Related Products

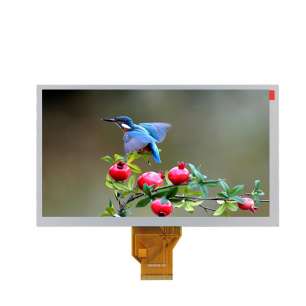

AT080TN64 INNOLUX 8" 450nits TFT...
