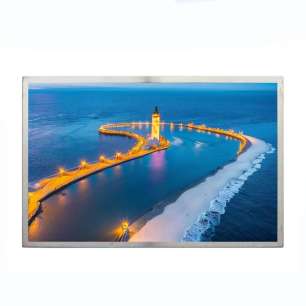

Chimei Innolux G154IJE-L02 15.4" 1280x800 Industrial LCD Panel

Chimei Innolux G154IJE-L02 15.4-inch WXGA (1280×800) rugged LCD panel for industrial applications. 400cd/m2, 88/88/88/88 wide viewing angles, and extended temperature range.

Model	G154IJE-L02
Brand	Chimei Innolux
Size	15.4inch
Resolution	1280*800
Brightness	400cd/m2
Perspective	88/88/88/88
Interface	LVDS
Operating Temp	-10 ~ 70 °C
Production State	Discontinued

Click For Price

1.Chimei Innolux G154IJE-L02 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G154IJE-L02
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15.4”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-10 ~ 70 °C	ST Temperature	-20 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver，6/8bit，Matte

2.Chimei Innolux G154IJE-L02 Optical Details

Basic Information :	Luminance	400 cd/m²(Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	15/10 (Typ.)(Tr/Td) ms
	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Operating Mode	MVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	45%	sRGB	62% coverage
	Adobe RGB	47% coverage	DCI-P3	47% coverage
	Rec.2020	34% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Chimei Innolux G154IJE-L02 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*800, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.086250.25875 mm (HV)	Pixel Pitch (W*H)	0.258750.25875 mm (HV) [98PPI]
Physical Size :	Active Viewing(mm)	331.2207 mm (HV)	Bezel Area (mm)	334.5210.3 mm (HV)
Physical Size :	Outline Dim.(mm)	352230 mm (HV)	Depth(mm)	8.7±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	920g (Typ.)	Surface	Antiglare, Hard coating (3H)

4.Chimei Innolux G154IJE-L02 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	19.0W (Max.)

5.Chimei Innolux G154IJE-L02 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		750/900mA (Typ./Max.)
	Consumption			4.0W (Max.)
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	STARCONN		093G30-B1001A-G4		1.0mm			30pins	1 pcs		LVDS-30P1C8B-105A

6.Chimei Innolux G154IJE-L02 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		9S5P	Position		Edge light type
	Exchange	Replaceable		Lamp Shape		5strings	Lamp Life		50K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current		1.2±0.1A		Input Voltage			12.0±1.2V
	Consumption		14.4/15.0W (Typ./Max.)

7.Chimei Innolux G154IJE-L02 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	13pcs / box	11 Kgs	465362314 mm
