AMT9502 5 88-inch 4-wire resistive touch screen offers reliable performance for industrial, medical & kiosk applications Request samples & pricing today!
| Part No. | AMT9502 |
| Brand | AMT |
| Thickness Overall | 5.88inch |
| Thickness Overall | 1.4mm |
| Tail Design | Integral / AMP-C |
| Outside Area | 140.00 x 104.00mm |
| Active Area | 119.20 x 90.30mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

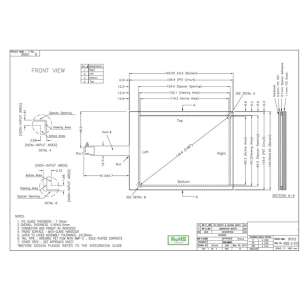

5.88inch 4-wire resistance touch screen AMT9502
AMT9502 5.88 inch 4-wire resistance touch screen
model
9502
Brand
AMT
Size (inches)
5.88nch
OVERALL THICKNESS :
1.40+0.10mm
Tail Design
Integral / AMP-C
Outline(mm)
140.00 x 104.00mm
Active Area(mm)
119.20 x 90.30mm
ITO GLASS THICKNESS :
1.10mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.30mm
TAIL TYPE
INTEGRAL PET FILM WITH AMP-C，GOLD-PLATED CONTACTS
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
AMT9502 5.88-inch 4-Wire Resistive Touch Screen
Cost-Effective & Rugged Touch Solution for Demanding Environments
✔ High Durability – Scratch-resistant surface (3H hardness) for long lifespan
✔ Precise Touch Control – Works with stylus, gloved hands, or bare fingers
✔ Wide Compatibility – Integrates easily with most embedded systems
✔ Low Power Consumption – Ideal for portable/battery-powered devices
✔ Easy Installation – Standard 4-wire analog interface
Technical Specifications:
Model Number: AMT9502
Technology: 4-Wire Resistive
Active Area: 5.88-inch diagonal
Surface Material: Hard-coated PET film
Transmittance: ≥82%
Interface: 4-Wire Analog
Operating Voltage: 5V DC ±10%
Touch Points: Single
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Industrial Applications:
Industrial HMI & Control Panels
Medical Diagnostic Equipment
POS Terminals & Kiosks
Automotive Dashboard Displays
Military & Aerospace Interfaces
IoT & Embedded Devices
