AMT9532 5 72-inch 4-wire resistive touch screen offers reliable performance for industrial control, medical devices and kiosk systems Request samples now!
| Part No. | AMT9532 |
| Brand | AMT |
| Thickness Overall | 5.7Iinch |
| Thickness Overall | 1.4mm |
| Tail Design | FPC / ZIF |
| Outside Area | 132.50 x 104.70mm |
| Active Area | 116.17 x 87.37mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

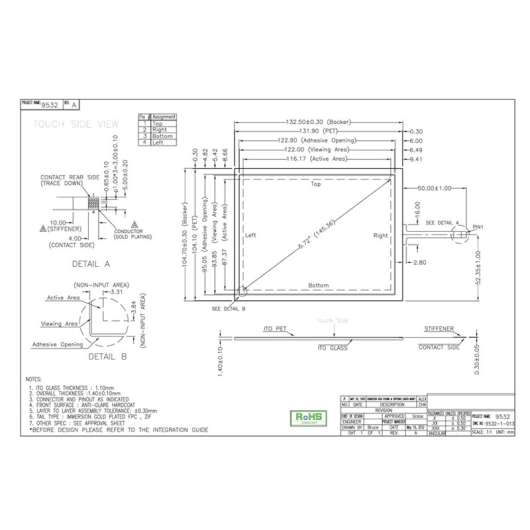

5.72inch 4-wire resistance touch screen AMT9532
AMT9532 5.72 inch 4-wire resistance touch screen
model
9532
Brand
AMT
Size (inches)
5.72nch
OVERALL THICKNESS :
1.40+0.10mm
Tail Design
FPC / ZIF
Outline(mm)
132.50 x 104.70mm
Active Area(mm)
116.17 x 87.37mm
ITO GLASS THICKNESS :
1.10mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.30mm
TAIL TYPE
IMMERSION GOLD PLATED FPC，ZIF
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
AMT9532 5.72-inch 4-Wire Resistive Touch Screen
Durable and Precise Touch Solution for Harsh Environments
Key Features:
✔ High Durability - Scratch-resistant 3H hardness surface
✔ Accurate Touch Control - Works with stylus, glove or finger
✔ Wide Compatibility - Easy integration with most embedded systems
✔ Low Power Consumption - Ideal for portable devices
✔ Cost-Effective Solution - Reliable performance at competitive price
Technical Specifications:
Model: AMT9532
Type: 4-Wire Resistive
Size: 5.72-inch diagonal
Active Area: 116.0 × 86.0 mm
Surface Hardness: 3H
Transmittance: ≥82%
Interface: 4-Wire Analog
Operating Voltage: 5V DC ±10%
Touch Points: Single
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Industrial Applications:
Industrial HMI Panels
Medical Equipment Interfaces
POS and Kiosk Systems
Automotive Displays
Test and Measurement Devices
Embedded Control Systems
