21.5-Inch 5-Wire Resistive Touch Panel | T215S-5RB026N-ZA28R0-300PH

The T215S-5RB026N-ZA28R0-300PH is a 21 5 inch 5 wire resistive touch window with a two layer structure that supports stylus or finger input and provides specifications for frame size active area viewable area and operating conditions

Part No.	T215S-5RB026N-ZA28R0-300PH
Brand	HIGGSTEC
Screen Size	21.5 inch
Thickness Overall	2.60mm
Touch Structure	ITO Film + ITO Glass (2-layer)
Frame Size	525.59*317.06mm
Viewable Area	477.84*269.31mm

Get Latest Price

T215S-5RB026N-ZA28R0-300PH - 21.5-Inch 5-Wire Resistive Touch Panel

The T215S-5RB026N-ZA28R0-300PH is a 21.5-inch, 5-wire resistive touch window with a two-layer structure. It supports stylus or finger input. Before ordering, check the panel dimensions, active and viewable areas, tail position, connector, and controller requirements against your display assembly.

Key Specifications

Parameter	Specification
Part number	T215S-5RB026N-ZA28R0-300PH
Screen size	21.5 inches
Touch technology	5-wire resistive touch panel (RTP)
Structure	Two-layer touch window
Input method	Stylus or finger
Frame size	525.59 x 317.06 mm; tolerance: +/-0.30 mm
Viewable area	477.84 x 269.31 mm; tolerance: +/-0.20 mm
Active area	480.84 x 272.31 mm; tolerance: +/-0.20 mm
SIL area (drawing label)	483.84 x 275.31 mm; tolerance: +/-0.20 mm
Operating temperature	-10 to +70 degrees C
Storage temperature	-40 to +80 degrees C
Operating humidity	20% RH to 80% RH, non-condensing
Storage humidity	20% RH to 90% RH, non-condensing
Transparency	77% or higher
Haze	8% +/-3%

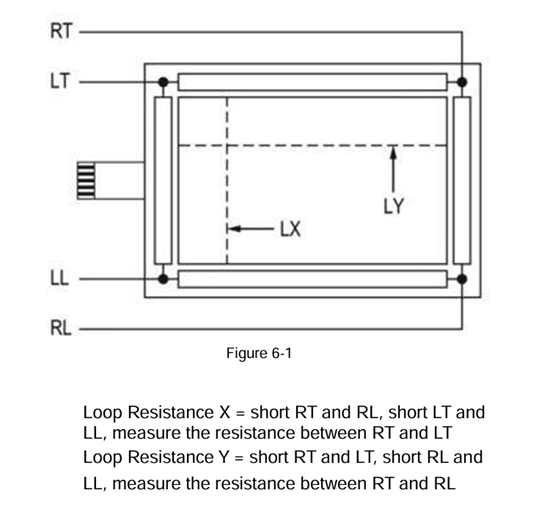

Loop resistance	X: 20 to 500 ohms; Y: 20 to 500 ohms
Linearity	X: 1.5% maximum; Y: 1.5% maximum
Chattering	15 ms maximum
Insulation	20 megohms minimum at 25 V DC
Operating force	R0.8 stylus: 50 g maximum
Hardness	3H minimum; pencil test at 750 g and 45 degrees
Knock test	10,000,000 times; refer to the product specification for test conditions and acceptance criteria

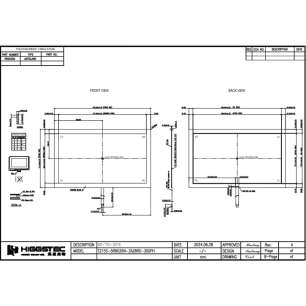

Overall thickness	The drawing contains multiple thickness callouts. Confirm the required overall thickness against the model-specific drawing.
IP rating	Not specified for the touch panel in the information provided. Confirm the rating and test report for the complete assembled product if required.

Integration Notes

Keep the support gasket outside the viewable area and allow sufficient clearance between the touch panel and bezel.
Make sure the bezel opening does not touch the viewable area.
Use an elastic support and prevent metal parts from contacting the conductive back surface.
Do not bond adhesive directly to the touch panel's top ITO film.
Ground the controller correctly and calibrate the panel after installation.
Confirm the tail length, tail position, connector, and mounting clearance against the model-specific drawing.
Check the complete display assembly for mechanical, cosmetic, and functional fit before production.

Frequently Asked Questions

Can this panel be operated with a stylus?

Yes. The specified input methods are stylus or finger.

What are the active and viewable areas?

The active area is 480.84 x 272.31 mm. The viewable area is 477.84 x 269.31 mm. Use the dimension drawing to confirm fit and bezel coverage.

What is the overall thickness?

The drawing contains multiple thickness callouts. Confirm the required overall thickness and mounting clearance against the model-specific drawing before finalizing the mechanical design.

What information is needed to confirm compatibility?

Please provide the display model, mechanical drawing, bezel opening, tail and connector details, and controller requirements. A matching 21.5-inch diagonal alone does not guarantee mechanical or electrical compatibility.

Does this touch panel have an IP rating?

An IP rating is not specified for the touch panel in the information provided. Confirm the rating and test report for the complete assembled product if ingress protection is required.
