GP-215F-5M-NB01C - 21.5-Inch 5-Wire Resistive Touch Panel

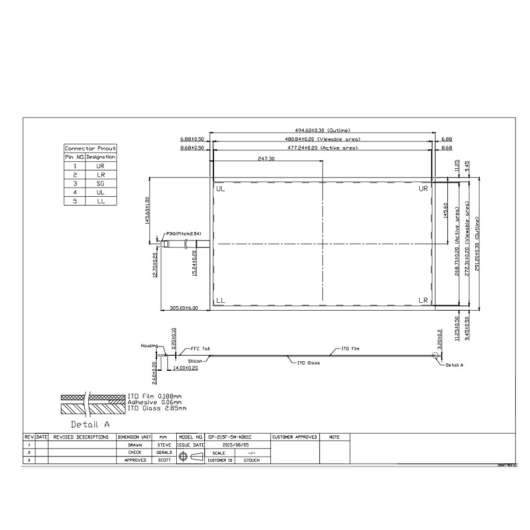

The GTOUCH GP-215F-5M-NB01C is a 21.5-inch analog 5-wire resistive touch panel designed for finger or stylus input. Check the mechanical drawing, FFC tail position and pinout, controller requirements, and the complete display assembly before confirming compatibility.

Key Specifications

Parameter	Specification
Model	GP-215F-5M-NB01C
Brand	GTOUCH
Screen size	21.5 inches
Touch technology	Analog 5-wire resistive touch panel
Supported input	Finger or stylus
Connector	FFC; confirm tail orientation and pinout against the drawing
Frame / outline size	494.60 × 291.20 mm; tolerance ±0.30 mm
Viewable area	480.84 × 272.31 mm; tolerance ±0.20 mm
Active area	477.24 × 268.71 mm; tolerance ±0.20 mm
Total thickness	3.20 mm; tolerance ±0.20 mm
FFC tail length	305.00 mm; tolerance ±6.00 mm
Operating temperature	−10 to +70 °C
Storage temperature	−40 to +80 °C
Operating humidity	20% to 80% RH, non-condensing
Storage humidity	20% to 90% RH, non-condensing
Transparency	80% ±3%; measured at 550 nm using ASTM D1003
Haze	8% ±3%; measured using ASTM D1003

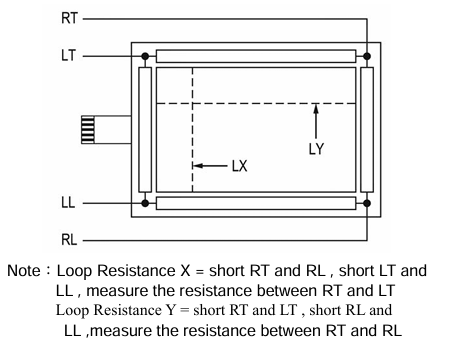

Loop resistance	X and Y: 20–500 Ω
Linearity	X and Y: ≤1.5%
Chattering	≤15 ms
Insulation resistance	≥20 MΩ at 25 V DC
Operating force	≤50 g with an R0.8 stylus
Surface hardness	≥3H; pencil test at 750 g and 45°
Durability test	10,000,000 touch cycles in the specified test; this is a test result, not a service-life or warranty promise

Specification note: Values above are transcribed from the supplied GTOUCH specification and drawing. Confirm the latest approved specification revision and model-specific drawing before production.

Integration Notes

Check the frame size, viewable area, active area, thickness, mounting clearance, and tail route against the mechanical drawing.
Confirm the FFC connector, pinout, tail direction, and controller compatibility before connection.
Keep the support gasket outside the viewable area. Do not allow the bezel to press on the viewable area.
Use elastic support and prevent metal parts from contacting the conductive back surface.
Do not bond adhesive directly to the touch panel’s top ITO film. Ground the controller correctly.
After installation, calibrate the panel and verify touch performance in the complete display assembly.

Frequently Asked Questions

Is this a complete display with an LCD and controller?

No. The specification describes a touch panel. Confirm separately whether an LCD, controller, cable, or other assembly parts are included in the quotation.

Can it be operated with a finger or stylus?

Yes. The supplied specification lists finger or stylus input.

What are the frame, viewable, and active area dimensions?

The frame is 494.60 × 291.20 mm, the viewable area is 480.84 × 272.31 mm, and the active area is 477.24 × 268.71 mm. Check the tolerances and drawing before designing the bezel.

What connector and tail length does it use?

The drawing specifies an FFC tail with a nominal length of 305.00 mm and a tolerance of ±6.00 mm. Confirm the pinout, orientation, and mating connector for your controller.

Does the 10-million-cycle test mean a guaranteed service life?

No. It is a durability test stated in the specification and should not be interpreted as a field-life guarantee or warranty term.

What information should I provide for a compatibility review?

Please provide the display model, mechanical drawing and bezel opening, required active/viewable areas, FFC connector and pinout, controller details, operating environment, and intended quantity. A matching screen size alone does not confirm compatibility.
