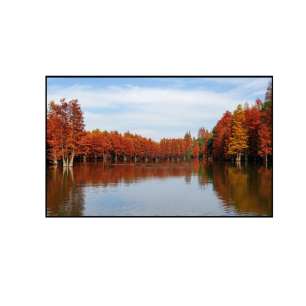

EV238FHM-N12 23.8" FHD IPS LCD Display| BOE Original | 72% NTSC

EV238FHM-N12 23.8inch FHD IPS LCD Display
EV238FHM-N12 23.8inch FHD IPS LCD Display
  • EV238FHM-N12 23.8inch FHD IPS LCD Display
  • EV238FHM-N12 23.8inch FHD IPS LCD Display

EV238FHM-N12 23.8" FHD IPS LCD Display| BOE Original | 72% NTSC

Original BOE EV238FHM-N12 23 8 " FHD IPS panel (1920×1080, 300nits, 72% NTSC) Industrial-grade with 1200:1 contrast & medical-grade certification Best for diagnostic imaging and industrial HMIs Wholesale pricing available.

Model EV238FHM-N12
Brand BOE
Size 23.8inch
Resolution 1920*1080
Brightness 300cd/m²
Perspective 89/89/89/89
Interface LVDS
Operating Temp 0 ~ 50 °C
Production State Discontinued
Click For Price

1.BOE EV238FHM-N12   Application Details

Basic Detail :Panel BrandBOEModel NameEV238FHM-N12
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size23.8”Designed ForMedical Imaging
Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :WLED Backlight,With LED Driver


2.BOE EV238FHM-N12   Optical Details

Basic Information :Luminance300  cd/m²(Min.)Contrast Ratio1200:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed20 (Typ.)(Tr+Td)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeADS, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.332Display Colors16.7M (6-bit + Hi-FRC)
Color Temperature6461KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio73%sRGB96% coverage
Adobe RGB76% coverageDCI-P376% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.BOE EV238FHM-N12  Mechanical Details

Pixel Features :Number of Pixel1920(RGB)*1080, FHDArrangementRGB Vertical Stripe
Dot Pitch (mm)0.0915*0.2745 mmPixel Pitch (mm)0.2745*0.2745 mm  [92PPI]
Physical Size :Active Viewing(mm)527.04(W)*296.46(H) mmBezel Area (mm)530.2(W)*299.6(H) mm
Outline Dim. (mm)543(W)*317.4(H) mmOutline Depth9/11.4 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight2.39Kgs (Typ.)SurfaceHard coating


4.BOE EV238FHM-N12   Electronics Details

Frame Frequency :60Hz
Reverse Scan :No


5.BOE EV238FHM-N12  Interface Details

Signal Systerm :LVDS (2 ch, 8-bit)
Signal Electrical :Voltage Input5.0V (Typ.)Current Input0.85/1.75A (Typ./Max.)
Consumption4.25/8.75W (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
UJUIS100-L30O-C231.0mm30pins1 pcs


6.BOE EV238FHM-N12   Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type -
Exchange
-		Lamp Shape-Lamp Life30K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
CviLuxCI0114M1HR0-NH2.0mm14pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage12±2.0VInput Current-
Consumption17.4/20.3W (Typ./Max.)


7.BOE EV238FHM-N12   Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*;H)
8pcs / box-619*238*448 mm
