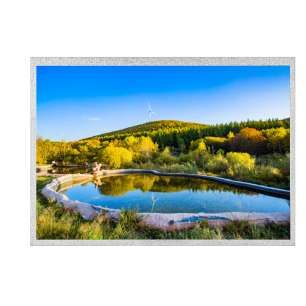

BOE EV121X0M-N10 is a 12 1-inch IPS TFT LCD display with XGA resolution (1024×768), offering wide viewing angles, high brightness (typ 1000 nits), and industrial-grade reliability Ideal for medical, industrial, and embedded applications
| Model | EV121X0M-N10 |
| Brand | BOE |
| Size | 12.1inch |
| Resolution | 1024x768 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.BOE EV121X0M-N10 Application Details
Basic Detail :
Manufacturer
BOE
Model Name
EV121X0M-N10
Panel Type
a-Si TFT-LCD , LCM
Panel Size
12.1inch
Designed For
Industrial，Medical Imaging
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
1.5G (14.7 m/s²)
Features :
WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F,U/D,L/R Reverse
2.BOE EV121X0M-N10 Optical Details
Basic Information :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) (ms)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.308; Wy:0.327
Support Color
16.7M (8-bit)
Color Temperature
6778K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3.BOE EV121X0M-N10 Mechanical Details
Pixel Features :
Number of Pixel
1024(RGB)×768 [XGA]
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.080×0.240 mm (H×V)
Pixel Pitch(W×H)
0.240×0.240 mm (H×V) [105PPI]
Physical Size :
Active Viewing
245.76×184.32 mm (H×V)
Bezel Area
249×187.5 mm (H×V)
Outline Dim.
260.5×204 mm (H×V)
Outline Depth
6.7/9.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass
520g (Max.)
Surface
-
4.BOE EV121X0M-N10 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
5.BOE EV121X0M-N10 Interface Details
Signal Electrical :
Input Current
0.7A (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
2.31/2.5W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position
Upper right of panel
Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
PM.CON.13076B2001
20 pins
1 pcs
6.BOE EV121X0M-N10 Lightting Details
Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Min.) (Hours)
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
ACES
91208-01001-H01
1.0 mm
10 pins
1 pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0V (Typ.)
Current Input
800mA (Typ.)
Consumption
9.6W (Typ.)
7.BOE EV121X0M-N10 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
3
N/A
N/A
