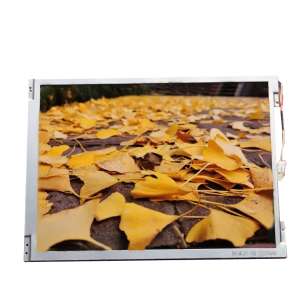

Budget-friendly BOE BA104S01-400 10 4-inch TFT LCD panel designed for household appliances Features 800×600 resolution, LVDS interface, and wide temperature range Reliable replacement screen with global shipping
| Model | BA104S01-400 |
| Brand | BOE |
| Size | 10.4inch |
| Resolution | 800*600 |
| Brightness | 350cd/m² |
| Perspective | 80/80/65/75 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 60 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.BOE BA104S01-400 Application Details
Basic Detail :
Manufacturer
BOE
Model Name
BA104S01-400
Panel Type
a-Si TFT-LCD , LCM
Panel Size
10.4 inch
Designed For
Digital Photo Frame，Home Appliance
Maximum Ratings :
OP Temperature
-20 ~ 60 °C
ST Temperature
-30 ~ 70 °C
Vibration Level
-
RoHS
RoHS
Features :
WLED Backlight，6/8 bit，Matte
2.BOE BA104S01-400 Optical Details
Basic Information :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
800 : 1 (Typ.) (Transmissive)
Good View at
-
Response Speed
30 (Typ.)(Tr+Td) (ms)
Viewing Angle
80/80/65/75 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.284; Wy:0.320
Support Color
262K/16.7M (6-bit / 8-bit)
Color Temperature
8455K
White Uniformity
1.25/1.43 (Typ./max.)(9 points)
3.BOE BA104S01-400 Mechanical Details
Pixel Features :
Number of Pixel
800(RGB)×600 [SVGA]
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Pitch(W×H)
0.264×0.264 mm [96PPI]
Physical Size :
Active Viewing
211.2(W)×158.4(H) mm
Overall Dim.
228.4(W)×175.4(H) mm
Bezel Opening
214.4(W)×161.6(H) mm
Overall Depth
5.5 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
-
Fixation :
Without
Other Detail :
Mass
TBD
Surface
Antiglare
4.BOE BA104S01-400 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in HX8245, HX8677
Time Controller (T-CON) :
Embedded T-CON
5.BOE BA104S01-400 Interface Details
Signal Electrical :
Input Current
-
Input Voltage
3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
0.77W (Typ.)
Signal Interface
Parallel RGB (1 ch, 6/8-bit)
Interface Features :
Position
-
Physical Type
FPC
Signal Interface :
Brand
Model
Amount
Pin Pitch
Pin Amount
Pin Assignment
1 pcs
0.5 mm
60 pins
6.BOE BA104S01-400 Lightting Details
Lamp Features:
Lamp Shape
Array
Lamp Type
WLED
Position
Edge light type (Top side)
Exchange
-
Amount
3S12P
Life
20K(Typ.) (Hours)
Lamp Electrical :
Input Current
240mA (Max.)
Input Voltage
9.0V (Max.)
Consumption
2.16W (Typ.)
Interface Features :
Position
-
Physical Type
Connector
nterface Detail :
Brand
Model
Amount
Pin Pitch
Pin Amount
Pin Assignment
JST
BHSR-02VS-1
1 pcs
3.5 mm
2pins
BLE-2PINS-AC
Backlight Driver :
No
