BOE BA104S01-100 10.4"TFT LCD Panel | 800×600 SVGA | Industrial Display Module

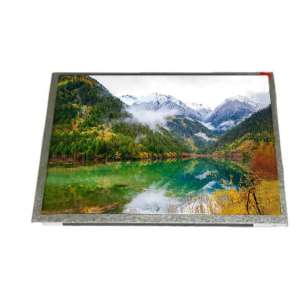

BOE BA104S01-100 10.4inch LCD Panel
BOE BA104S01-100 10.4inch LCD Panel
  • BOE BA104S01-100 10.4inch LCD Panel
  • BOE BA104S01-100 10.4inch LCD Panel

BOE BA104S01-100 10.4"TFT LCD Panel | 800×600 SVGA | Industrial Display Module

Original BOE BA104S01-100 10 4 " SVGA (800×600) LCD panel with 500cd m² brightness Industrial-grade, wide temperature range (-20°C~70°C) Ideal for HMI, medical & kiosk displays Request specs!

Model BA104S01-100
Brand BOE
Size 10.4inch
Resolution 800*600
Brightness 500cd/m2
Perspective 70/70/60/70 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.BOE 10.4"TFT LCD Panel  BA104S01-100   Application Details

Basic Detail :Panel BrandBOEModel NameBA104S01-100
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.4”Designed ForIndustrial，Medical Imaging
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，Life>=50K hours,Reverse I/F, 6/8bit


2.BOE 10.4"TFT LCD Panel BA104S01-100 Optical Details

Basic Information :Luminance500  cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed30 (Typ.)(Tr+Td) (ms)
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.299; Wy:0.339Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature7141KWhite Variation1.25/1.43 (Typ./max.)(9 points)
1931 Color Gamlt :NTSC Ratio53%sRGB74% coverage
Adobe RGB55% coverageDCI-P355% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.BOE 10.4"TFT LCD Panel  BA104S01-100 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600 [SVGA]ArrangementRGB Vertical Stripe
Dot Pitch0.088*0.264 mm (H*V)Pixel Pitch (W*H)0.264*0.264 mm (H*V)  [96PPI]
Physical Size :Active Viewing(mm)211.2*158.4 mm (H*V)Bezel Area (mm)215.0*162.0 mm (H*V)
Outline Dim. (mm)236*176.9 mm (H*V)Outline Depth5.6±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Holes & Brackets :Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Features :Weight288g (Typ.)SurfaceClear


4.BOE 10.4"TFT LCD Panel BA104S01-100   Electronics Details

Frame Frequency :60Hz
Reverse Scan :No
Power Consumption :4.084W (Typ.)


5.BOE 10.4"TFT LCD Panel  BA104S01-100 Interface Details

Signal Systerm :LVDS (1 ch,6/ 8-bit)Consumption1.6W (Typ.)
Signal Electrical :Voltage Input3.3V (Typ.)Current Input480mA (Max.)
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STMMSB24013P201.0mm20pins1 pcsLVDS-20P1C8B-020D


6.BOE 10.4"TFT LCD Panel BA104S01-100  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S6PPositionEdge light type (Top side)
Exchange
-		Lamp ShapeArrayLamp Life50K(Min.) (Hours)
Lamp Electrical :Voltage Supply17.4/20.4V (Min./Max.)Current Supply120mA (Typ.)
Consumption2.484W (Typ.)
Interface Features :PositionRearPhysical TypeConnector
Lamp DriverNo
Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment


1 pcs
2 pinsBLE-2PINS-AC


7.BOE 10.4"TFT LCD Panel BA104S01-100 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
25 pcs / box9.9±1.0 Kgs510*350*252 mm
