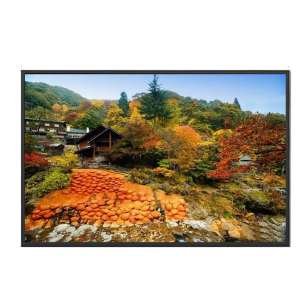

Original EV101WXM-N81 10.1" IPS BOE LCD - 1280×800 TFT Display Panel

Original EV101WXM-N81 10.1inch IPS BOE LCD
Original EV101WXM-N81 10.1inch IPS BOE LCD
Original EV101WXM-N81 10.1inch IPS BOE LCD
  • Original EV101WXM-N81 10.1inch IPS BOE LCD
  • Original EV101WXM-N81 10.1inch IPS BOE LCD
  • Original EV101WXM-N81 10.1inch IPS BOE LCD

Original EV101WXM-N81 10.1" IPS BOE LCD - 1280×800 TFT Display Panel

Original Boe EV101WXM-N81 10 1 " IPS LCD Panel - 1280×800 WXGA resolution,500cd m2， wide viewing angles High-quality TFT display for industrial commercial use Request specs

Model EV101WXM-N81
Brand BOE
Size 10.1inch
Resolution 1280*800
Brightness 500cd/m2
Perspective 85/85/85/85
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.BOE EV101WXM-N81   Application Details

Basic Detail :Panel BrandBOEModel NameEV101WXM-N81
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForMedical Imaging
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80°C
RoHSRoHSVibration Level
Features :WLED Backlight,Life>=50K hours,With LED Driver


2.BOE EV101WXM-N81 Optical Details

Basic Information :Luminance500  cd/m²(Typ.)Contrast Ratio900:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed30 (Typ.)(Tr+Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)   Operating ModeADS, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors16.2M (6-bit + FRC)

Color Temperature		6485KWhite Variation1.33/1.54 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB73% coverage
Adobe RGB55% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilityNoTransmissivity5.4% (Typ.)


3.BOE EV101WXM-N81 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800 [WXGA]ArrangementRGB Vertical Stripe
Dot Pitch0.0565*0.1695 mm (H*V)Pixel Pitch (W×H)0.1695*0.1695 mm  [149PPI]
Physical Size :Active Viewing(mm)216.96(W)*135.6(H) mmBezel Area (mm)219.4(W)*138.0(H) mm
Outline Dim. (mm)233.2(W)*152.9(H) mmOutline Depth6.7/10.4 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4 pcs) on left, right bezel
Other Features :Weight505g (Typ.)Surface-


4.BOE EV101WXM-N81   Electronics Details

Frame Frequency :60Hz
Reverse Scan :No
Power Consumption :4.1W (Typ.)


5.BOE EV101WXM-N81  Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Consumption0.8/1.1W (Typ./Max.)
Signal Electrical :Voltage Input3.3V (Typ.)Current Input250/330mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF19G-20P-1H(56)1.0mm20pins1 pcs


6.BOE EV101WXM-N81  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life50K(Min.) (Hours)
Lamp Electrical :Voltage Supply12±0.5VCurrent Supply-
Consumption3.3W (Typ.)
Interface Features :Position-Physical TypeConnector
Lamp DriverWith LED Driver

Interface Detail :
 		BrandModelAmountPin PitchPin AmountPin Assignment


1 pcs
6 pins


7.BOE EV101WXM-N81  Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
22 pcs / box-500*400*290 mm
