BOE EV101WXM-N80 10.1" LCD Display | 1280×800 | Industrial TFT Module

BOE EV101WXM-N80 10.1inch LCD Display
BOE EV101WXM-N80 10.1inch LCD Display
BOE EV101WXM-N80 10.1inch LCD Display
  • BOE EV101WXM-N80 10.1inch LCD Display
  • BOE EV101WXM-N80 10.1inch LCD Display
  • BOE EV101WXM-N80 10.1inch LCD Display

BOE EV101WXM-N80 10.1" LCD Display | 1280×800 | Industrial TFT Module

Original BOE EV101WXM-N80 10 1 " LCD (1280×800) display module with 300cd m² brightness Wide viewing angles, LVDS interface Ideal for industrial HMI, medical & kiosk applications Get specs!

Model EV101WXM-N80
Brand BOE
Size 10.1inch
Resolution 1280*800
Brightness 400 cd/m² (Typ.)
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.BOE 10.1" LCD Display EV101WXM-N80 Application Details

Basic Detail :Panel BrandBOEModel NameEV101WXM-N80
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForMedical Imaging
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight


2.BOE 10.1" LCD Display EV101WXM-N80 Optical Details

Basic Information :Luminance400 cd/m² (Typ.)Contrast Ratio900:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed30 (Typ.)(Tr+Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)   Operating ModeADS, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors16.2M (6-bit + FRC)
Color Temperature6485KWhite Variation1.54/1.67 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio48%sRGB68% coverage
Adobe RGB51% coverageDCI-P350% coverage
Rec.202036% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilityNoTransmissivity5.4% (Typ.)


3.BOE 10.1" LCD Display EV101WXM-N80 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800 [WXGA]ArrangementRGB Vertical Stripe
Dot Pitch0.0565*0.1695 mm (H*V)Pixel Pitch (W*H)0.1695*0.1695 mm  [149PPI]
Physical Size :Active Viewing(mm)216.96(W)*135.6(H) mmBezel Area (mm)219.4(W)*138.0(H) mm
Outline Dim. (mm)233.2(W)*152.9(H) mmOutline Depth6.7/10.4 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4 pcs) on left, right bezel
Other Features :Weight505g (Typ.)Surface-


4.BOE 10.1" LCD Display EV101WXM-N80   Electronics Details

Frame Frequency :60Hz
Reverse Scan :No


5.BOE 10.1" LCD Display EV101WXM-N80  Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Consumption0.58/0.7/0.83W (Min./Typ./Max.)
Signal Electrical :Voltage Input3.3V (Typ.)Current Input250mA (Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF19G-20P-1H(56)1.0mm20pins1 pcs


6.BOE 10.1" LCD Display EV101WXM-N80  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life30K(Min.) (Hours)
Lamp Electrical :Voltage Supply12±0.5VCurrent Supply-
Consumption2.3W (Typ.)
Interface Features :Position-Physical TypeConnector
Lamp DriverWith LED Driver
Interface Detail :
 		BrandModelAmountPin PitchPin AmountPin Assignment


1 pcs
6 pins


7.BOE 10.1" LCD Display EV101WXM-N80 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
25 pcs / box-375*280*290 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Original EV101WXM-N81 10.1" IPS BOE LCD Display- 1280×800 TFT Display Panel Original BOE EV101WXM-N10 10.1" IPS LCD Display | 1920×1200 | LVDS Interface | Industrial-Grade

Related Products

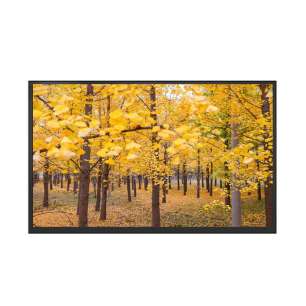

Original BOE TV101WUM-NS0 10.1" I...

Original BOE TV101WUM-NS0 1...

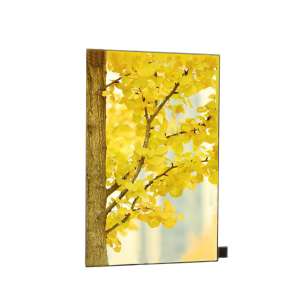

Original EV101WXM-N81 10.1" IPS B...

Original EV101WXM-N81 10.1"...

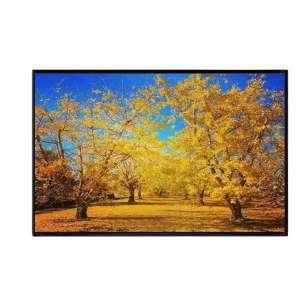

Original BOE EV101WXM-N10 10.1" I...

Original BOE EV101WXM-N10 1...

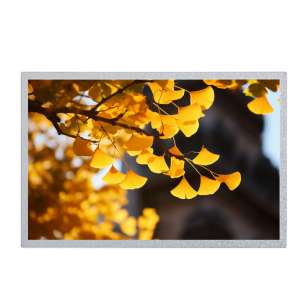

Original BOE QV101WUM-N80 10.1" L...
