AUO M185XTN01.2 18.5 inch tft lcd panel scre

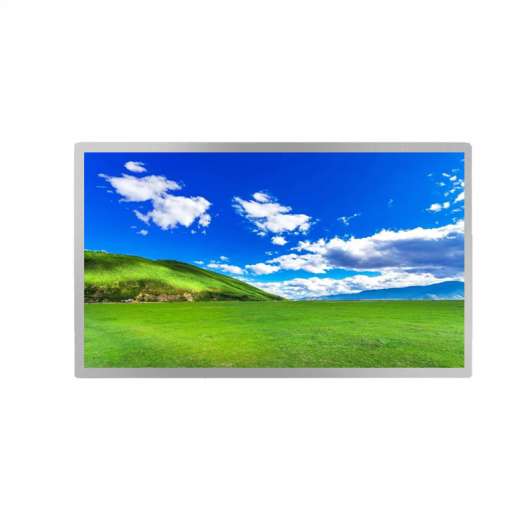

AUO M185XTN01.2 18.5 inch tft lcd panel screen 1366x768 with wide view angle

AUO M185XTN01 2 Application DetailsBasic Detail :ManufacturerAUOModel NameM185XTN01 2Panel Typea-Si TFT-LCD , LCMAnother

Model	M185XTN01.2
Brand	AUO
Size	18.5inch
Resolution	1366*768
Brightness	250 cd/m²
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	0 ~ 50 °C
Production State	Discontinued

Click For Price

AUO M185XTN01.2 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	M185XTN01.2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	M185XTN01 V2
	Panel Size	18.5	Designed For	Desktop Monitor
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight， Matte,Upside I/F

AUO M185XTN01.2 Optical Details

Basic Information :	Luminance	250cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	3.6/1.4 (Typ.)(Tr/Td) ms
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	97% coverage
	Adobe RGB	75% coverage	DCI-P3	76% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO M185XTN01.2 Mechanical Details

Pixel Features :	Number of Pixel	1366(RGB)*768, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.100*0.300 mm	Pixel Pitch(mm)	0.300*0.300 mm [84PPI]
Physical Size :	Active Viewing(mm)	409.8(W)*230.4(H) mm	Outline Dim.(mm)	430.4(W)*254.6(H) mm
Physical Size :	Bezel Area (mm)	413.4(W)*234.0(H) mm	Outline Depth	7.8/10.3 (Typ./Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.29Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO M185XTN01.2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption:	7.85W (Typ.)

AUO M185XTN01.2 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	0.35/0.42A (Typ./Max.)
	Consumption		1.75/2.1W (Typ./Max.)			Signal Interface	LVDS (1 ch, 8-bit)
Interface Features :	Position		Rear			Type	Connector
Interface Detail :	Brand	Model		Pitch	Pins			Quantity	Pin Configuration
	STM	MSCKT2407P30HB		1.0mm	30 pins			1 pcs	LVDS-30P1C8B-170A

AUO M185XTN01.2 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

7S4P

Position

Edge light type (Right side)

Exchange

Lamp Shape

4strings

Lamp Life

30K(Min.) Hours

Lamp Electrical :

Input Voltage

21.7±2.1V

Input Current

70/77mA (Typ./Max.)

Consumption

6.1/6.7W (Typ./Max.)

Interface Features :

Position

Rear

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

E&T

3707K-S06N-21R

1.0mm

6 pins

1 pcs

BLE-6PINS-CCAACC

Backlight Driver :

AUO M185XTN01.2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	14pcs / box	20.745 Kgs	485372348 mm (LWH)
