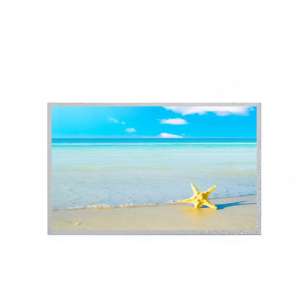

High-quality AUO 18.5 inch Full HD 1080p LCD Panel IPS Display G185HAN01.3

AUO G185HAN01 3 Application DetailsBasic Detail :ManufacturerAUOModel NameG185HAN01 3Panel Typea-Si TFT-LCD , LCMModel

Model	G185HAN01.3
Brand	AUO
Size	18.5inch
Resolution	1920*1080
Brightness	500cd/m2
Perspective	89/89/89/89
Interface	eDP
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

AUO G185HAN01.3 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G185HAN01.3
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	18.5inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-20 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight，Life>=50K hours,With LED Driver，Matte

AUO G185HAN01.3 Optical Details

Basic Information :	Luminance	500cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td)
	Viewing Angle	89/89/89/89 (Typ.)(Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.299; Wy:0.315	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	7502K	White Variation	1.18/1.25 (Typ./Max.)(9 points)

AUO G185HAN01.3 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)*1080, FHD	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0710.213 (HV)	Pixel Pitch(W×H)	0.2130.213 (HV) [119PPI]
Physical Size :	Active Viewing(mm)	408.96(H) *230.04(V)	Outline Dim.(mm)	428.23(H) *252.87(V)
Physical Size :	Bezel Area	-	Outline Depth	9.2 (Typ.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	-	Surface	Antiglare, Hard coating (3H)

AUO G185HAN01.3 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No

AUO G185HAN01.3 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)	Current Supply	-
Signal Electrical :	Consumption	-	Signal Interface	eDP

AUO G185HAN01.3 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position	Edge light type
	Exchange	-		Lamp Shape		-	Lamp Life	30K(Min.) Hours
Interface Features :	Position	-		Physical Type		Connector
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		12.0±1.2V		Current Supply			-

AUO G185HAN01.3 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	8pcs / box	-	520280352 mm (LWH)
