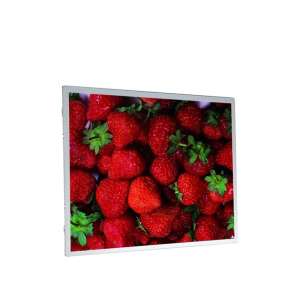

AUO G150XTN06.4 15" XGA LCD Display | 400cd/m² Backlight | Industrial TFT Panel

AUO G150XTN06.4 15` XGA LCD Display
AUO G150XTN06.4 15` XGA LCD Display
  • AUO G150XTN06.4 15` XGA LCD Display
  • AUO G150XTN06.4 15` XGA LCD Display

AUO G150XTN06.4 15" XGA LCD Display | 400cd/m² Backlight | Industrial TFT Panel

Original AU Optronics G150XTN06 4 15 " TFT LCD: 1024x768 XGA resolution with 400cd m² WLED backlight, LVDS 30-pin interface, wide temp (-30°C~85°C) Uniform brightness & 70K-hour lifespan for HMIs, medical imaging & aviation displays Request sample & bulk pricing

Model G150XTN06.4
Brand AUO
Size 15inch
Resolution 1024*768
Brightness 400cd/m2
Perspective 80/80/70/80 (Typ.)
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

AUO  G150XTN06.4 Application Details

Basic Detail :ManufacturerAUOModel NameG150XTN06.4
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size15inchDesigned ForIdustrial
Maximum Ratings :OP Temperature-30 ~ 85°CST Temperature-30 ~ 85°C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=70K hours,With LED Driver,Upside I/F, 180°Reverse，Matte,6/8 bit


AUO  G150XTN06.4 Optical Details

Basic Information :Luminance400 cd/m² (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View at-Response Speed5.7/2.3 (Typ.)(Tr/Td)
Viewing Angle80/80/70/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.311; Wy:0.322Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6658KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio63%sRGB85% coverage
Adobe RGB65% coverageDCI-P366% coverage
Rec.202047% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


AUO   G150XTN06.4 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.099*0.297 (H*V)Pixel Pitch(W*H)0.297*0.297 (H*V)  [85PPI]
Physical Size :Active Viewing(mm)304.128(H) *228.096(V)Outline Dim.(mm)326.5(H) *253.5(V)
Bezel Area(mm)307.4(H) *231.3(V)Depth(mm)12.0 (Max.)
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M3) on left, right bezel
Other Spec :Weight1.00Kgs (Typ.)TreatmentAntiglare, Hard coating (3H)


AUO  G150XTN06.4 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Total Consumption :8.92W (Typ.)


AUO   G150XTN06.4 Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply450/750mA (Typ./Max.)
Consumption1.49/2.48W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :PositionRearTypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
STMMSB240420E1.25 mm20 pins1 pcs


AUO   G150XTN06.4 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type (Bottom side)
ExchangeReplaceableLamp Shape-Lamp Life70K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
E&T3808K-F05N-12R 1.25 mm5 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply12.0VCurrent Supply0.62/0.84A (Typ./Max.)
Consumption7.43/10.13W (Typ./Max.)


AUO  G150XTN06.4 Packing Details

Package Box :QuantityWeightBox Size
15pcs / box18.5 Kgs (Max.)434*380*353 mm (L*W*H)
