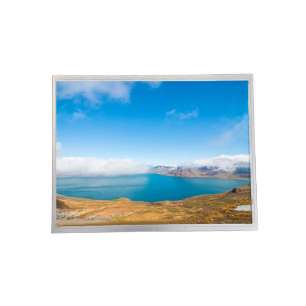

AUO G150XAB03.0 15" XGA Industrial LCD Display | Original 1024x768 Panel

G150XAB03.0
G150XAB03.0
  • G150XAB03.0
  • G150XAB03.0

AUO G150XAB03.0 15" XGA Industrial LCD Display | Original 1024x768 Panel

Original AUO G150XAB03 0 15 " XGA LCD, 1024x768, 300 cd m² Industrial-grade (-20~70°C), eDP interface ,Full View, Bulk MOQ 1pcs, for HMI ATM replacements Request wholesale catalog!

Model G150XAB03.0
Brand AUO
Size 15inch
Resolution 1024*768
Brightness 400cd/m2
Perspective 89/89/89/89
Interface eDP
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.AUO G150XAB03.0 Application Details

Basic Info :Panel BrandAUOPanel ModelG150XAB03.0
Diagonal Size15.0 inchApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :Operating Temp.-20 ~ 70 °CStorage Temp.-20 ~ 70 °C
RoHS StateRoHSVibration Rating1.5G (14.7 m/s²)
Specific Features :With Touch， WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F, Glossy


2.AUO G150XAB03.0 Mechanical Details

Pixel Features :Pixel Format1024(RGB)*768, XGADot Pitch (mm)0.099*0.297 (H×V)
ConfigurationRGB Vertical StripePixel Pitch (mm)0.297*0.297 (H*V)  [85PPI]
Mechanical Size :Display Area (mm)304.128(H) *228.096(V)Outline Dim (mm).-
Outline Dim. (mm)320.12(H) *258.4(V)Outline Depth (mm)8.3 (Max.)
Outline Features :Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio8:3 (H:V)Shape Style
Touch Panel :Touch Points10 pointsTouch PanelOn-Cell Touch
TP ControllerWith controllerTouch SignalUSB (Win7, Win8, Win10)
Holes & Brackets :Without
Other Features :Weight980g (Max.)SurfaceGlare (Haze 0%)
Panel CoverWith Cover Lens


3.AUO G150XAB03.0 Optical Details

BrightnessBrightness400 cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeAHVA, Normally Black, Transmissive
Viewing DirectionSymmetryResponse Time25 (Typ.)(Tr+Td) (ms)
Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.2M (6-bit + FRC)
Color Temperature6485KUniformity1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :NTSC Ratio60%sRGB78% coverage

Adobe RGB		62%
coverage		DCI-P362% coverage
Rec.202045% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.AUO G150XAB03.0 Electronics Details

Frame Frequency :60Hz
Reverse Scan :No


5.AUO G150XAB03.0 Backlight Details

Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) (Hours)
Replacement-Lamp Shape-PositionEdge light type
Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
Driver Electrical :Voltage Input12.0±1.2VCurrent Input0.49/0.54A (Typ./Max.)
Consumption5.91/6.48W (Typ./Max.)


6.AUO G150XAB03.0 Interface Details

Signal Systerm :eDP (1 Lane)
Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)
Current Input0.43/0.53A (Typ./Max.)
Consumption1.42/1.72W (Typ./Max.)
Interface Features :Type ConnectorPositionDown middle of panel
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
I-PEX20765-040E-11A0.5mm40 pins1 pcs


7.AUO G150XAB03.0 Packing Details

Package Box :QuantityWeightBox Size
10 pcs / box10.0 kg508*408*279 mm (L*W*H)
