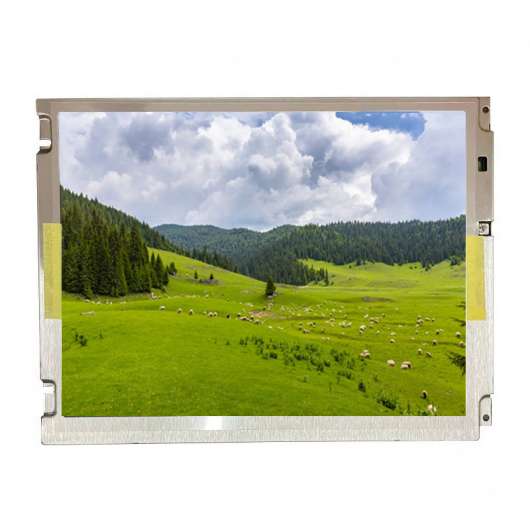

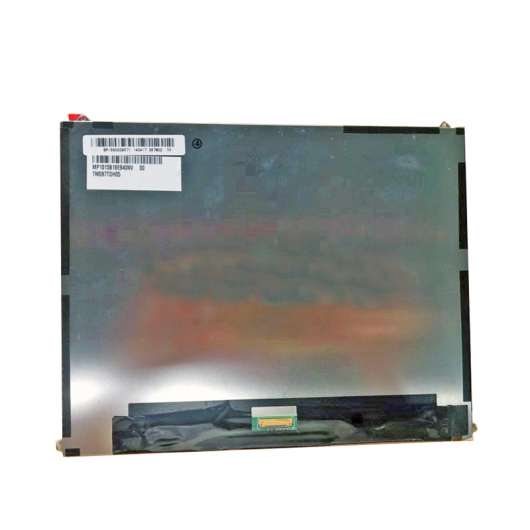

TIANMA 9.7inch LCM 1024x768 270 500:1 262K WLED LVDS TM097TDH05 TFT LCD Display

TIANMA 9.7inch LCM 1024x768 270 500:1 262K WLED LVDS TM097TDH05 TFT LCD Display

TIANMA TM097TDH05 Application Detailsasic Detail :Panel BrandTIANMAModel NameTM097TDH05Panel Typea-Si TFT-LCD , LCMAnot

Model TM097TDH05
Brand TIANMA
Size 9.7inch
Resolution 1024*768
Brightness 270cd/m2
Perspective 70/60/70/70
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

TIANMA TM097TDH05  Application Details

asic Detail :Panel BrandTIANMAModel NameTM097TDH05
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size9.7”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level
Features :WLED Backlight


TIANMA TM097TDH05 Optical Details

Basic Information :Luminance270 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at3 o'clockResponse Speed20 (Typ.)(Tr+Td) (ms)
Viewing Angle70/60/70/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K (6-bit)
Color Temperature6485KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio49%sRGB69% coverage
Adobe RGB52% coverageDCI-P351% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM097TDH05 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768 [XGA]ArrangementRGB Vertical Stripe
Dot Pitch (W×H)0.064*0.192 mmPixel Pitch (W×H)0.192*0.192 mm  [132PPI]
Physical Size :Active Viewing(mm)196.608(W)*147.456(H) mmBezel Area (mm)-
Outline Dim.(mm)210.3*164.4 mm (H*V)Depth(mm)2.85/5.0 (Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(H:V)OrientationLandscape type
Holes & Brackets :Face mounting holes (4pcs) on left, right, up slugs
Other Spec :Weight235gSurfaceClear


TIANMA TM097TDH05 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption : 3.2W (Typ.)


TIANMA TM097TDH05  Interface Details

Signal Systerm :Parallel RGB (1 ch, 6-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input271mA (Typ.)
Consumption894.3mW (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
I-PEX20474-030E-110.4mm30pins1 pcsLVDS-30P1C6B-070B


TIANMA TM097TDH05 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S6PPositionEdge light type
Exchange
-		Lamp Shape6 stringsLamp Life30K(Typ.) (Hours)
Lamp Electrical :Input Current20mA (Typ.)Input Voltage19.2V (Typ.)
Consumption2.3W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


TIANMA TM097TDH05 Packing Details

Package Box :QuantityWeightBox Size
36 pcs / box14.2 Kgs530*350*250 mm  (L*W*H)
