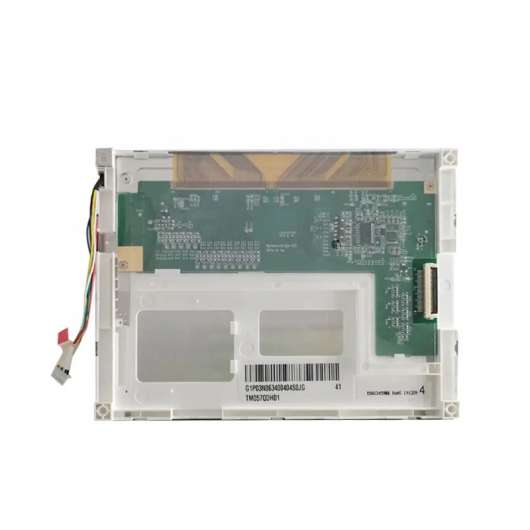

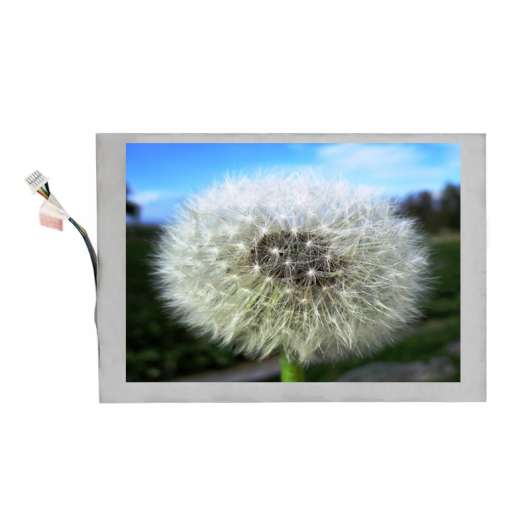

Industrial 5.7 inch 320x240 TIANMA RGB Module TM057KDH01 400 nits Controller

Industrial 5.7 inch 320x240 TIANMA RGB Module TM057KDH01 400 nits Controller

TIANMA TM057KDH01 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM057KDH01Panel Typea-Si TFT-LCD , LCMAno

Model TM057KDH01
Brand TIANMA
Size 5.7inch
Resolution 320*240
Brightness 400 cd/m² (Typ.)
Perspective 70/70/70/60 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

TIANMA TM057KDH01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM057KDH01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size5.7”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level
Features :WLED Backlight，Life>=50K hours,U/D.L/R Reverse，Matte


TIANMA TM057KDH01 Optical Details

Basic Information :Luminance400 cd/m² (Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20 (Typ.)(Tr+Td) (ms)
Viewing Angle70/70/70/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.324; Wy:0.362Display Colors262K (6-bit)
Color Temperature5814KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio54%sRGB73% coverage
Adobe RGB56% coverageDCI-P355% coverage
Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM057KDH01  Mechanical Details

Pixel Features :Number of Pixel320(RGB)*240, QVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.120*0.360 mmPixel Pitch (W*H)0.360*0.360 mm  [70PPI]
Physical Size :Active Viewing(mm)115.2(W)*86.4(H) mmBezel Area (mm)118.2(W)*89.4(H) mm
Outline Dim.(mm)144(W)*104.6(H) mmDepth(mm)12.8 (Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Fixation :Rear mounting poles (4-Φ2.6)
Other Spec :Weight160g (Typ.)SurfaceAntiglare, Hard coating (3H)


TIANMA TM057KDH01  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)


TIANMA TM057KDH01 Interface Details

Signal Systerm :Parallel RGB (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3V (Typ.)Current Input145/225mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STARCONN089H33-000100-G2-R0.5mm33pins1 pcsDRGB-33P1C6B-020B


TIANMA TM057KDH01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S3PPositionEdge light type
Exchange
-		Lamp Shape3 stringsLamp Life50K(Typ.) (Hours)
Lamp Electrical :Input Voltage14.85/18.15V (Min./Max.)Input Current25mA (Typ.)
Consumption1.238W (Typ.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JSTSHLP-06V-S-B1.0mm6 pins1 pcsBLE-6PINS-AAACCC


TIANMA TM057KDH01 Carton Details

Package Box :AmountWeightSize (L*W*H)
40 pcs / box9.396 Kgs530*350*250 mm
