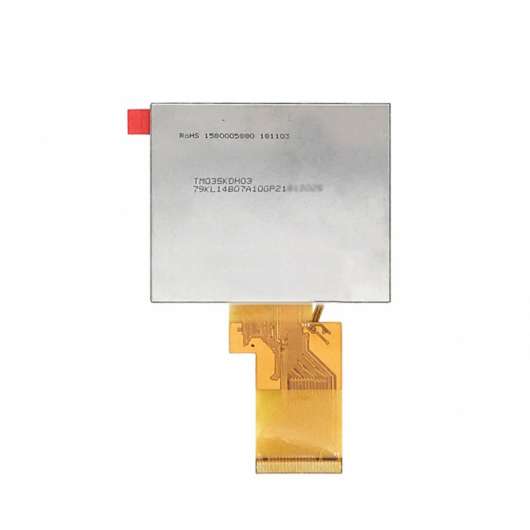

TIANMA TM035KDH03 Tianma 3.5 Inch 54 Pin RGB spi Interface Screen 320x240

TIANMA TM035KDH03 Tianma 3.5 Inch 54 Pin RGB spi Interface Screen 320x240

TIANMA TM035KDH03 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM035KDH03Panel Typea-Si TFT-LCD , LCMAno

Model TM035KDH03
Brand TIANMA
Size 3.5inch
Resolution 320*240
Brightness 300cd/m2
Perspective 70/70/60/70 (Typ.)
Interface RGB+ SPI
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

TIANMA TM035KDH03 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM035KDH03
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size3.5”Designed ForHandheld&PDA,Digital Still Camera，Digital Video Camera
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level
Features :WLED Backlight


TIANMA TM035KDH03 Optical Details

Basic Information :Luminance300 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.280; Wy:0.305Display Colors16.7M (6-bit + Dithering)
Color Temperature9273KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio53%sRGB75% coverage
Adobe RGB56% coverageDCI-P356% coverage
Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM035KDH03 Mechanical Details

Pixel Features :Number of Pixel320(RGB)*240, QVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.073*0.219 mmPixel Pitch (W*H)0.219*0.219 mm  [115PPI]
Physical Size :Active Viewing(mm)70.08(W)*52.56(H) mmBezel Area (mm)72.88(W)*55.36(H) mm
Outline Dim.(mm)76.9(W)*63.9(H) mmDepth(mm)3.15±0.2 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Other Spec :Weight30.0gSurfaceClear, Hard coating (3H)


TIANMA TM035KDH03 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :Built-in NV3035C
Time Controller (T-CON) :Embedded T-CON


TIANMA TM035KDH03 Interface Details

Signal Systerm :Digital RGB (8/24-bit) + SPI, CCIR601/656Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :Voltage Input
 3.3V (Typ.)		Current Input-
Consumption35/50mW (Typ./Max.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm54pins1 pcs


TIANMA TM035KDH03 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S1PPositionEdge light type
Exchange
-		Lamp Shape1 stringLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage19.2±2.4VInput Current20/25mA (Typ./Max.)
Consumption384/510mW (Typ./Max.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


TIANMA TM035KDH03 Carton Details

Package Box :AmountWeightSize (L*W*H)
168 pcs / box8.94±0.45 Kgs530*350*250 mm
