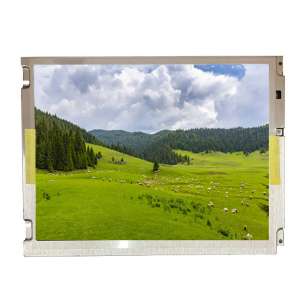

TM097TDH01 Tianma 9.7" Industrial TFT LCD | 1024x768 RGB Interface

TM097TDH01 Tianma 9.7` Industrial TFT LCD
TM097TDH01 Tianma 9.7` Industrial TFT LCD
  • TM097TDH01 Tianma 9.7` Industrial TFT LCD
  • TM097TDH01 Tianma 9.7` Industrial TFT LCD

TM097TDH01 Tianma 9.7" Industrial TFT LCD | 1024x768 RGB Interface

Tianma TM097TDH01 9 7-inch TFT LCD screen features 1024x768 XGA resolution and RGB interface for harsh industrial environments brightness 220 nits, temperature range (-20°C~70°C), and anti-glare surface, it’s perfect for factory automation, medical monitors, and portable devices Download specs or contact for OEM pricing

Model TM097TDH01
Brand TIANMA
Size 9.7inch
Resolution 1024*768
Brightness 220cd/m²
Perspective 70/60/70/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 9.7 " TFT LCD TM097TDH01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM097TDH01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size9.7”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80°C
RoHSRoHSVibration Level
Features :WLED Backlight,U/D,L/R Reverse，6/8bit，Matte


2.TIANMA 9.7 " TFT LCD TM097TDH01 Optical Details

Basic Information :Luminance220 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at3 o'clockResponse Speed20 (Typ.)(Tr+Td) (ms)
Viewing Angle70/60/70/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329
 		Display Colors262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature6485KWhite Variation1.33(Typ.)(9 points）
1931 Color Gamlt :NTSC Ratio50%sRGB69% coverage
Adobe RGB52% coverageDCI-P352% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 9.7 " TFT LCDTM097TDH01 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768 [XGA]ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.064*0.192 mmPixel Pitch (W*H)0.192*0.192 mm  [132PPI]
Physical Size :Active Viewing(mm)196.608(W)*147.456(H) mmBezel Area (mm)200.91(W)*152.26(H) mm
Outline Dim.(mm)210.2(W)*166.2(H) mmDepth(mm)3.66±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(H:V)OrientationLandscape type
Holes & Brackets :Face mounting holes (10 pcs) on left, right, up, down slugs
Other Spec :WeightTBDSurfaceAntiglare, Hard coating (3H)


4.TIANMA 9.7 " TFT LCDTM097TDH01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)


5.TIANMA 9.7 " TFT LCD TM097TDH01 Interface Details

Signal Systerm :Parallel RGB (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3/12.5/22.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input-
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm50pins1 pcs


6.TIANMA 9.7 " TFT LCD TM097TDH01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S6PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life30K(Typ.) (Hours)
Lamp Electrical :Input Current120mA (Typ.)Input Voltage19.2V (Typ.)
Consumption2.3W (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
YEONHO35001HS-023.5 mm2 pins1 pcsBLE-2PINS-AC
Backlight Driver :No
