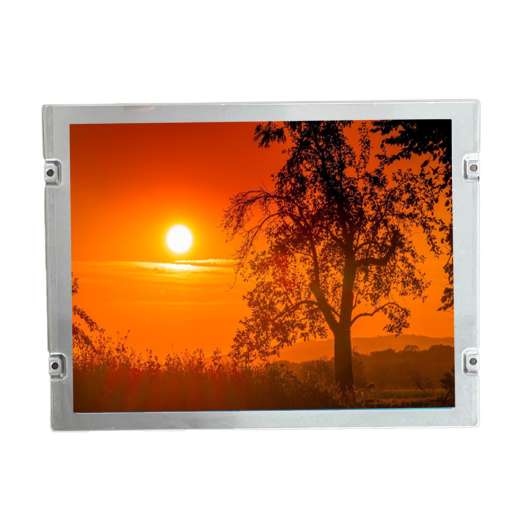

1.TIANMA P0840XGF1MA00Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0840XGF1MA00Diagonal Size8.4"ApplicationI...
| Model | P0840XGF1MA00 |
| Brand | TIANMA |
| Size | 8.4inch |
| Resolution | 1024*768 |
| Brightness | 1000cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P0840XGF1MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0840XGF1MA00
Diagonal Size
8.4"
Application
Industrial，Outdoor High Brightness
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-30 ~~ 80 °C
Storage Temp.
-40 ~~ 90 °C
RoHS State
RoHS
Vibration Rating
2.0G (19.6 m/s²)
Specific Features :
Wide Temperature，Ultra High Brightness , WLED Backlight,Life≥100K hour， 180° Reverse, 6/8bit，Matte

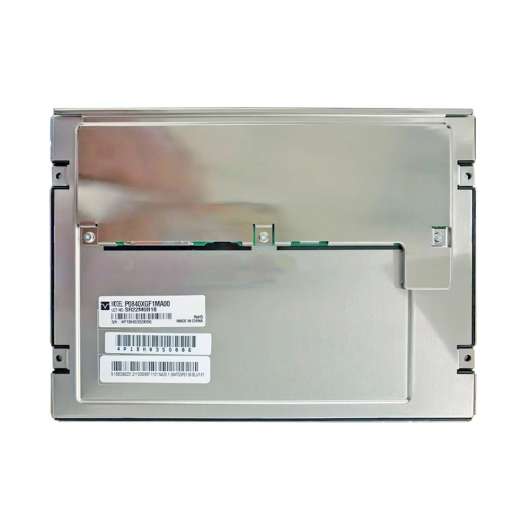

2. TIANMA P0840XGF1MA00 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.0555×0.1665 (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch (mm)
0.1665×0.1665 (H×V) [152PPI]
Mechanical Size :
Active Viewing(mm)
170.496(H) × 127.872(V)
Outline Dim.(mm)
199.5(H) × 149(V)
Overall Dim.(mm)
173.5(H) × 130.87(V)
Outline Depth
7.6/10.2 (Typ./Max.)
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Other Features :
Weight
303g (Typ.)
Surface
Antiglare
Mounting :
Side mounting holes (4-M2) on left, right bezel, Face mounting holes (4-Φ3.4) on left, right bezel
3. TIANMAP0840XGF1MA00 Optical Details
Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.307; Wy:0.333
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6771K
White Uniformity
1.18/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
71%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Performance :
3D Technology
Outdoor Visibility
Reflectance
-
Sunlight Readable
-
4. TIANMA P0840XGF1MA00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
2.42W (Typ.)
Time Controller (T-CON) :
Built-in NT51625TTH*2 + NT52602TTH*1
5. TIANMA P0840XGF1MA00 Backlight Details
Back-light Features:
Lamp Shape
3strings
Lamp Type
WLED
Life Time
100K(Typ.) (Hours)
Replacement
-
Amount
7S3P
Position
Edge light type
Lamp Electrical :
Voltage Input
22.4±2.1V
Current Input
100/110mA (Typ./Max.)
Consumption
6.72W (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
JST
SM06B-SHLS-TF(LF)(SN)
1.0 mm
6 pins
1 pcs
BLE-6PINS-NNCAAC
6. TIANMA P0840XGF1MA00 Interface Details
Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
310mA (Typ.)
Consumption
1.02W (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-SEB20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H
7.TIANMA P0840XGF1MA00 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
10
1
520×345×111
N/A
0.0199
Outer box
20
2
544×365×250
10.95
0.0496
