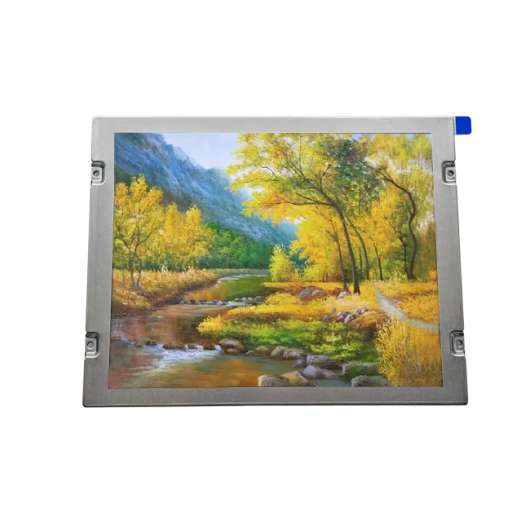

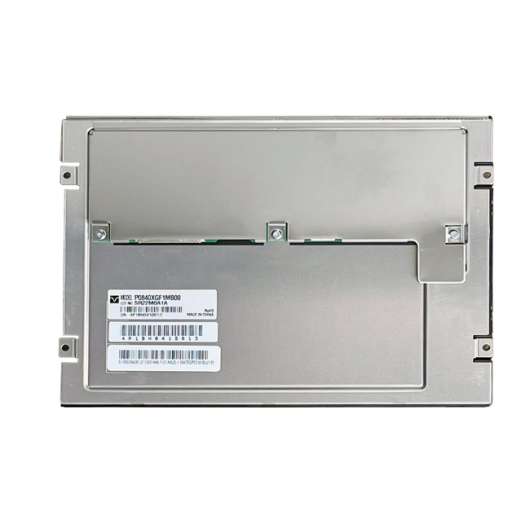

1.TIANMA P0840SVN1MB00Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0840SVN1MB00Diagonal Size8.4"ApplicationI...
| Model | P0840SVN1MB00 |
| Brand | TIANMA |
| Size | 8.4inch |
| Resolution | 800*600 |
| Brightness | 350cd/m2 |
| Perspective | 80/80/60/80 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P0840SVN1MB00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0840SVN1MB00
Diagonal Size
8.4"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
TM084TDGP02-00
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight,Life≥50K hour，With LED Driver，U/D,L/R Reverse， 6/8bit，Matte
2. TIANMA P0840SVN1MB00 Mechanical Details
Pixel Features :
Pixel Format
800(RGB)×600 [SVGA]
Dot Pitch(W×H)
0.071×0.213 mm
Configuration
RGB Vertical Stripe
Pixel Pitch (W×H)
0.213×0.213 mm [119PPI]
Mechanical Size :
Active Viewing(mm)
170.496(H) × 127.872(V)
Outline Dim.(mm)
203(W)×142.5(H) mm
Overall Dim.(mm)
173.2(H) × 130.6(V)
Outline Depth
5.7±0.2 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Fixation :
Side mounting holes (2-Φ3.5, 2-R1.5) on left, right, up, down bezel
Other Features :
Weight
185.1g (Typ.)
Surface
Antiglare
3. TIANMA P0840SVN1MB00 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
20 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.300; Wy:0.331
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
7189K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
54%
sRGB
75% coverage
Adobe RGB
57% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P0840SVN1MB00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
2.04W (Typ.)
5. TIANMA P0840SVN1MB00 Backlight Details
Back-light Features:
Lamp Shape
Array
Lamp Type
WLED
Life Time
50K(Typ.) (Hours)
Replacement
-
Amount
8S3P
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MSB24038P4
1.25 mm
4 pins
1 pcs
Driver Electrical :
Input Current
-
Input Voltage
12.0±0.5V
Consumption
1.524W (Typ.)
6. TIANMA P0840SVN1MB00 Interface Details
Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
156/234mA (Typ./Max.)
Consumption
515mW (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19K-20P-1H(54)
1.0mm
20 pins
1 pcs
LVDS-20P1C8B-140A
7.TIANMA P0840SVN1MB00 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
30
1
510×350×350
10.76
0.0625
