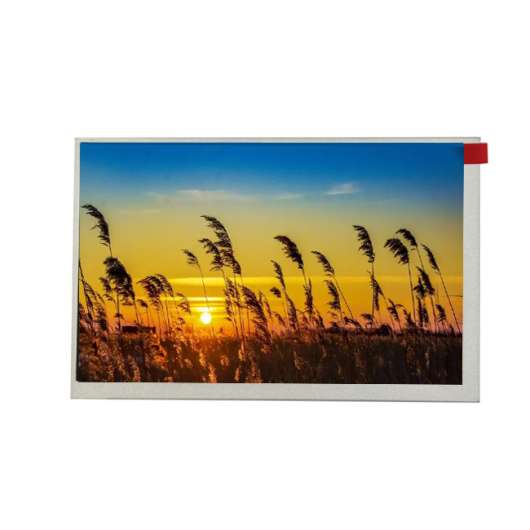

TIANMA s 7 0-inch P0700WSF2MB00 industrial LCD panel offers a wide viewing angle up to 88 88 88 88, excellent readability, and robust performance Ideal for industrial HMI, portable devices, test equipment, and POS systems Request a quote and datasheet
| Model | P0700WSF2MB00 |
| Brand | TIANMA |
| Size | 7.0inch |
| Resolution | 1024*600 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma P0700WSF2MB00 is available for 7-inch industrial LCD projects. Typical evaluation scenarios include compact HMI, instrumentation and embedded terminals. Before ordering, confirm the complete original model number and revision rather than relying only on display size.
Confirm outline dimensions, active area, mounting points, resolution, signal interface, connector and pin assignment, timing, supply voltage, brightness, viewing direction, operating temperature and backlight requirements. A similar model name does not guarantee electrical or mechanical interchangeability.
MOQ is 1 piece. Contact us for the latest real-time quotation, current availability and lead time. Pricing changes with order quantity, specification, customization requirements and exchange rate. Replacement-panel review, touchscreen, cover glass, optical bonding, cables and controller-board support are available for qualified projects.
Request Latest Price and Compatibility Review
Send the original model number, mechanical drawing, interface, connector pinout, resolution, brightness and operating-temperature requirements for an engineering review.
MOQ is 1 piece. Price is provided by real-time quotation according to quantity, availability, specification, customization and exchange rate.
Yes. We can evaluate alternative panels and support touch, cover glass, optical bonding, cables and controller-board integration for qualified projects.
1. TIANMA P0700WSF2MB00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0700WSF2MB00
Diagonal Size
7.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight，U/D,L/R Reverse，Matte
2. TIANMA P0700WSF2MB00 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×600, WSVGA
Dot Pitch
0.050×0.150 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.150×0.150 mm (H×V) [169PPI]
Mechanical Size :
Display Area
153.6×90 mm (H×V)
Bezel Area(mm)
156.4×92.8 mm (H×V)
Outline Dim.
164.5×104.2 mm (H×V)
Outline Depth
3.5±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
17:10 (H:V)
Shape Style
Holes & Brackets :
Without
Other Features :
Weight
120±6g
Surface
Antiglare
3. TIANMA P0700WSF2MB00 Optical Details
Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30(Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.303; Wy:0.334
Color Numbers
16.7M (8-bit)
Color Temperature
6980K
White Uniformity
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
53%
sRGB Coverage
71%
Adobe RGB Coverage
55%
DCI-P3 Coverage
55%
Rec.2020 Coverage
39%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P0700WSF2MB00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
5. TIANMA P0700WSF2MB00 Backlight Details
Back-light Features:
Lamp Shape
3strings
Lamp Type
WLED
Life Time
30K(Min.) (Hours)
Replacement
-
Amount
9S3P
Position
Edge light type
WLED Electrical :
Voltage Supply
24.3/27/28.8V (Min./Typ./Max.)
Current Supply
60mA (Typ.)
Power
1.62W (Typ.)
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
No
6. TIANMA P0700WSF2MB00 Interface Details
Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Consumption
323.4mW (Typ.)
Interface Features :
Type
FPC
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Amount
0.5 mm
40 pins
1 pcs
7. TIANMA P0700WSF2MB00 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
52
398×290×315
10.70
