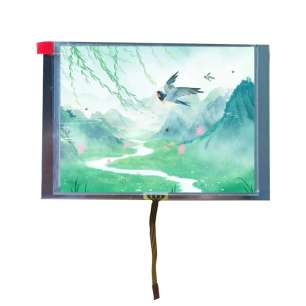

Genuine Tianma TM057KDHG04 5 7-inch TFT LCD module with 320×240 resolution Rugged industrial-grade display for harsh environments, compatible with automation equipment and control systems

Model	TM057KDHG04
Brand	TIANMA
Size	5.7inch
Resolution	320*240
Brightness	500 cd/m² (Typ.)
Perspective	70/70/70/60 (Typ.)
Interface	RGB
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

1.TIANMA 5 7" TFT LCD TM057KDHG04 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM057KDHG04
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	5.7”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight，Life>=50K hours,With LED Driver，U/D.L/R Reverse，Matte

2.TIANMA 5 7" TFT LCD TM057KDHG04 Optical Details

Basic Information :	Luminance	500 cd/m² (Min.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	20 (Typ.)(Tr+Td) (ms)
	Viewing Angle	70/70/70/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	54%	sRGB	73% coverage
	Adobe RGB	56% coverage	DCI-P3	55% coverage
	Rec.2020	40% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.TIANMA 5 7" TFT LCD TM057KDHG04 Mechanical Details

Pixel Features :	Number of Pixel	320(RGB)*240 [QVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.120*0.360 mm	Pixel Pitch (W*H)	0.1800.180 (HV) [141PPI]
Physical Size :	Active Viewing(mm)	115.2(W)*86.4(H) mm	Bezel Area (mm)	-
Physical Size :	Outline Dim.(mm)	144(H) * 104.6(V)	Depth(mm)	12.3/12.8 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Fixation :	Rear mounting Pole (4-Φ2.6)
Other Spec :	Weight	TBD	Surface	Antiglare, Hard coating (3H)

4.TIANMA 5 7" TFT LCD TM057KDHG04 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

5.TIANMA 5 7" TFT LCD TM057KDHG04 Interface Details

Signal Systerm :		Parallel RGB (1 ch, 6-bit)				Logic Voltage				0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		145/225mA (Typ./Max.)
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	HRS		FH12-33S-0.5SH(55)		0.5mm			33pins	1 pcs

6.TIANMA 5 7" TFT LCD TM057KDHG04 Backlight Details

Lamp Features :	Lamp Type		WLED		Quantity		6S3P		Position	Edge light type
	Exchange		-		Lamp Shape		Array		Lamp Life	50K(Typ.) (Hours)
Interface Features :	Position		-		Physical Type		Connector
Backlight Driver :	With LED Driver
Interface Detail :	Brand	Model		Pin Pitch		Pins		Amount		Pin Assignment
	JST	SM06B-SRSS-TB		1.0mm		6pins		1 pcs
Driver Electrical :	Input Current	-		Input Voltage				9.0/12.0/21.0V (Min./Typ./Max.)
	Consumption	1.20W (Typ.)

7.TIANMA 5 7" TFT LCD TM057KDHG04 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	40 pcs / box	9.40 Kgs	530350250 mm
