Original TM056KDH02 5.6"TFT LCD Panel - 320×234 Display Module

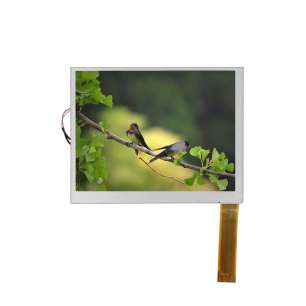

Tianma TM056KDH02 5.6-inch LCD screen module
Tianma TM056KDH02 5.6-inch LCD screen module
Tianma TM056KDH02 5.6-inch LCD screen module
  • Tianma TM056KDH02 5.6-inch LCD screen module
  • Tianma TM056KDH02 5.6-inch LCD screen module
  • Tianma TM056KDH02 5.6-inch LCD screen module

Original TM056KDH02 5.6"TFT LCD Panel - 320×234 Display Module

Genuine Tianma TM056KDH02 5 6-inch LCD screen module with 320×234 resolution High-quality display panel suitable for industrial equipment, medical devices, and specialized display applications

Model TM056KDH02
Brand TIANMA
Size 5.6inch
Resolution 320*234
Brightness 330 cd/m² (Typ.)
Perspective 65/65/45/65 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 5.6" TFT LCD TM056KDH02 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM056KDH02
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size5.6”Designed ForIndustrial，Digital Photo Frame，Portable DVD Player，Video Door Phone
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，U/D.L/R Reverse，Matte


2.TIANMA 5.6" TFT LCD TM056KDH02 Optical Details

Basic Information :Luminance330 cd/m² (Min.)Contrast Ratio300:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle65/65/45/65 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Display ColorsFull color
Color Temperature6638KWhite Variation1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB71% coverage
Adobe RGB54% coverageDCI-P353% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 5.6" TFT LCD TM056KDH02  Mechanical Details

Pixel Features :Number of Pixel320(RGB)*234ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.118*0.362 mmPixel Pitch (W*H)0.354*0.362 mm  [71PPI]
Physical Size :Active Viewing(mm)113.28(W)*84.708(H) mmBezel Area (mm)116.08(W)*87.51(H) mm
Outline Dim.(mm)126.5(W)*100(H) mmDepth(mm)5.7 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Other Spec :Weight123g (Typ.)SurfaceAntiglare


4.TIANMA 5.6" TFT LCD TM056KDH02  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Driver IC :Need external T-CON


5.TIANMA 5.6" TFT LCD TM056KDH02 Interface Details

Signal Systerm :TFT Specific Analog RGBLogic Voltage-
Signal Electrical :Voltage Input5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input0.8/3.41/0.056/0.056mA (Typ.)(ICC/IAVDD/IGH/IGL)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm26pins1 pcs


6.TIANMA 5.6" TFT LCD TM056KDH02 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity2S7PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage6.4V (Typ.)Input Current140mA (Typ.)
Consumption896mW (Typ.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JSTBHSR-02VS-13.5 mm2 pins1 pcsBLE-2PINS-AC


7.TIANMA 5.6" TFT LCD TM056KDH02 Carton Details

Package Box :AmountWeightSize (L*W*H)
50 pcs / box10.09Kgs530*350*250 mm
