TM035KDH04 3.5" Industrial TFT LCD Display (320×240) | Tianma Panel Screen

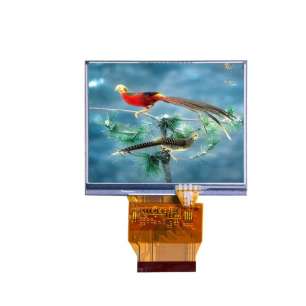

TM035KDH04 3.5inch QVGA Industrial TFT LCD Display
TM035KDH04 3.5inch QVGA Industrial TFT LCD Display
  • TM035KDH04 3.5inch QVGA Industrial TFT LCD Display
  • TM035KDH04 3.5inch QVGA Industrial TFT LCD Display

TM035KDH04 3.5" Industrial TFT LCD Display (320×240) | Tianma Panel Screen

High-quality TM035KDH04 3 5-inch QVGA TFT LCD display module with 320×240 resolution Durable industrial-grade replacement screen compatible with Tianma original specifications Ideal for HMI, medical devices, and industrial control systems

Model TM035KDH04
Brand TIANMA
Size 3.5inch
Resolution 320*240
Brightness 420 cd/m² (Typ.)
Perspective 70/70/60/70 (Typ.)
Interface RGB+SPI
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 3.5" LCD Panel TM035KDH04 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM035KDH04
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size3.5”Designed ForHandheld&PDA,Digital Still Camera
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :WLED Backlight



2.TIANMA 3.5" LCD Panel TM035KDH04 Optical Details

Basic Information :Luminance420 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.280; Wy:0.310Display Colors16.7M (6-bit + Dithering)
Color Temperature9085KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio53%sRGB75% coverage
Adobe RGB56% coverageDCI-P356% coverage
Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



3.TIANMA 3.5" LCD Panel TM035KDH04 Mechanical Details

Pixel Features :Number of Pixel320(RGB)*240, QVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.073*0.219 mmPixel Pitch (W*H)0.219*0.219 mm  [115PPI]
Physical Size :Active Viewing(mm)70.08(W)*52.56(H) mmBezel Area (mm)72.88(W)*55.36(H) mm
Outline Dim.(mm)76.9(W)*63.9(H) mmDepth(mm)2.8±0.2 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Other Spec :Weight30.0gSurfaceClear


4.TIANMA 3.5" LCD Panel TM035KDH04 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :Built-in NV3035C
Time Controller (T-CON) :Embedded T-CON


5.TIANMA 3.5" LCD Panel TM035KDH04 Interface Details

Signal Systerm :Digital RGB (8/24-bit) + SPI, CCIR601/656Logic Voltage0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Signal Electrical :Voltage Input
 3.3V (Typ.)		Current Input-
Consumption45/65mW (Typ./Max.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm54pins1 pcs


6.TIANMA 3.5" LCD Panel TM035KDH04 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S1PPositionEdge light type
ExchangeReplaceableLamp Shape1 stringLamp Life-
Lamp Electrical :Input Voltage19.2±2.4VInput Current20/25mA (Typ./Max.)
Consumption384mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 3.5" LCD Panel TM035KDH04 Carton Details

Package Box :AmountWeightSize (L*W*H)
252 pcs / box12.6 Kgs (Typ.)544*360*250 mm
