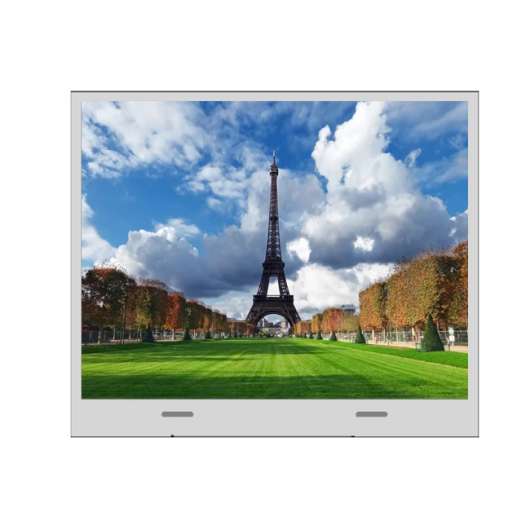

1. TIANMA P0350QVF1ME00 Application FeaturesBasic Information :BrandModelTypeModel AliasTIANMAP0350QVF1ME00a-Si TFT-LCD ,...
| Model | P0350QVF1ME00 |
| Brand | TIANMA |
| Size | 3.5inch |
| Resolution | 320*240 |
| Brightness | 350cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P0350QVF1ME00 Application Features
Basic Information :
Brand
Model
Type
Model Alias
TIANMA
P0350QVF1ME00
a-Si TFT-LCD , LCM
-
Reliability :
RoHS
Operating Temperature
Storage Temperature
Vibration Resistance
RoHS
-20 ~ 70 °C
-30 ~ 80 °C
-
Designed For :
Handheld &PDA
Specific Features :
Wide Temperature， Matte
2. TIANMA P0350QVF1ME00 Mechanical Features
Panel Size :
3.5 inch
Pixel Features :
Resolution
Pixel Arrangement
Dot Pitch (W×H)
Pixel Pitch (W×H)
320(RGB)×240, QVGA
RGB Vertical Stripe
0.073×0.219 mm
0.219×0.219 mm [115PPI]
Mechanical Size :
Active Area (W×H)
Bezel Area (W×H)
Outline Dimension (W×H)
Outline Depth
70.08×52.56 mm
72.68×55.16 mm
76.9×63.9 mm
3.15±0.3 mm
Outline Features :
Form Style
Aspect Ratio
Orientation
Shape Style
Flat Rectangle
4:3 (W : H)
Landscape type
Fixation :
Face mounting holes (1-Φ3.4, 3-R1.7) on left, right bezel
Other Features :
Panel Cover
Weight
Surface
-
31.0g
Antiglare, Hard coating
3. TIANMA P0350QVF1ME00 Optical Features
Basic Information :
Brightness
Operating Mode
Contrast Ratio
350 cd/m² (Typ.)
SFT, Normally Black, Transmissive
800:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D)
Viewing Direction
Response Speed
88/88/88/88 (Typ.)(CR≥10)
Symmetry
25 (Typ.)(Tr+Td) (ms)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
7368K
16.7M (8-bit)
X:0.301; Y:0.315
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
60%
80%
62%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
62%
45%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.25/1.33 (Typ./Max.)(9 points)
4. TIANMA P0350QVF1ME00 Electronics Features
Power Consumption :
430mW (Typ.)
Frame Rate :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON
5. TIANMA P0350QVF1ME00 Interface Features
Signal Electrical :
Current Input
Voltage Input
Consumption
-
3.3V (Typ.)
70mW (Typ.)
Voltage for Display Signals :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
Type
Interface
-
FPC
Parallel RGB (1 ch, 8-bit) + SPI
Signal Interface :
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
1 pcs
0.5 mm
54 pins
6. TIANMA P0350QVF1ME00 Backlight Features
Backlight Features:
Type
Position
Shape
Amount
Life(Hours)
Replacement
WLED
Edge light type
1 strings
6S1P
30K(Min.)
WLED Electrical :
Current Input
Voltage Input
Consumption
20mA (Typ.)
18V (Typ.)
360mW (Typ.)
Interface Features :
Position
Type
WLED Driver
-
Included in signal interface
No
7. TIANMA P0350QVF1ME00 Packing Features
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
84
520×345×74
N/A
