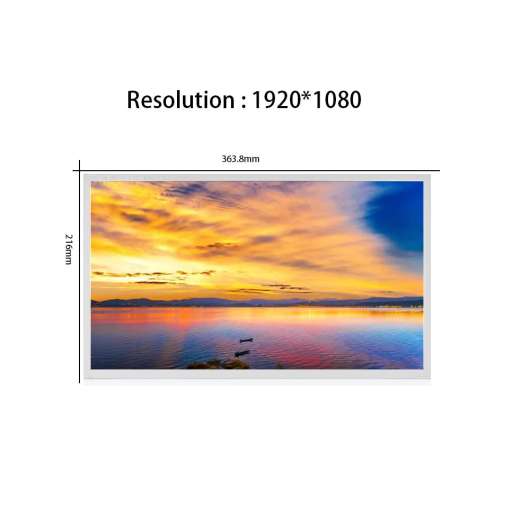

Discover the Tianma 15 6-inch P1560FHF3MB00, a high-brightness FHD industrial LCD module delivering exceptional performance in demanding environments. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | P1560FHF3MB00 |
| Brand | TIANMA |
| Size | 15.6inch |
| Resolution | 1920*1080 |
| Brightness | 500cd/m2 |
| Perspective | 89/89/89/89 |
| Interface | eDP |
| Operating Temp | -10 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
1. TIANMA P1560FHF3MB00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1560FHF3MB00
Diagonal Size
15.6"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-10 ~~70 °C
Storage Temp.
-20 ~~ 70 °C
RoHS State
RoHS
Vibration Rating
Specific Features :
sRGB，WLED Backlight,Life≥50K hours，With LED Driver
2. TIANMA P1560FHF3MB00 Mechanical Details
Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch(W×H)
0.05975×0.17925 mm
Configuration
RGB Vertical Stripe
Pixel Pitch(W×H)
0.17925×0.17925 mm [141PPI]
Mechanical Size :
Active Viewing
344.16(W)×193.59(H) mm
Overall Dim.
351.884(W)×208.38(H) mm
Bezel Opening
-
Outline Depth(mm)
6.74/6.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9(H:V)
Shape Style
Fixation :
Without
Other Detail :
Mass
570g (Typ.)
Surface
Hard coating (3H)
3. TIANMA P1560FHF3MB00 Optical Details
Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.308; Wy:0.325
Color Numbers
16.7M (8-bit)
Color Temperature
6799K
White Variation
-
1931 Color Gamut :
NTSC Ratio
78%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
81% coverage
Rec.2020
58% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1560FHF3MB00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
Total Consumption :
10.57W (Typ.)
5. TIANMA P1560FHF3MB00 Backlight Details
Back-light Features:
Lamp Shape
5 strings
Amount
9S5P
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Type
WLED
Position
Edge light type
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.2V
Input Current
820mA (Typ.)
Consumption
9.84W (Typ.)
6. TIANMA P1560FHF3MB00 Interface Details
Signal Systerm :
Input Current
-
Input Voltage
3.3V (Typ.)
Consumption
0.73W (Typ.)
Signal Interface
eDP (2 Lanes), eDP1.2
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-040E-76
0.5mm
40pins
1pcs
7. TIANMA P1560FHF3MB00 Carton Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
7
1
520×345×111
N/A
0.0199
Outer box
14
2
544×365×250
13.91
0.0496
Pallet
420
60
N/A
N/A
N/A
P1560FHF3MB00 Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
