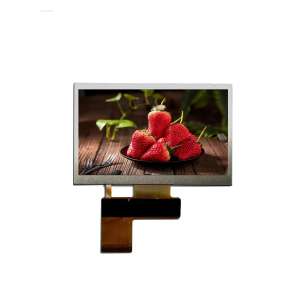

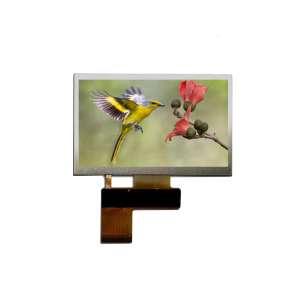

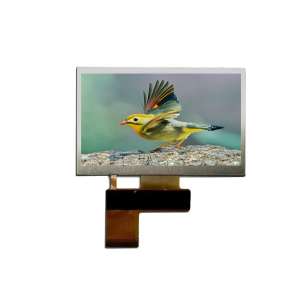

Original Kyocera TCG043WQLBAANN-GN50 4 3inch industrial-grade touch LCD 480x272 resolution, 800 nits brightness -20~70°C operation, 100K hrs lifespan For medical HMI aviation use Request free samples & OEM specs!
| Model | TCG043WQLBAANN-GN50 |
| Brand | Kyocera |
| Size | 4.3inch |
| Resolution | 480*272 |
| Brightness | 800 cd/m² (Typ.) |
| Perspective | 70/70/60/65 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.Kyocera TCG043WQLBAANN-GN50 Application Details
Basic Information :
Brand
Kyocera
Model
TCG043WQLBAANN-GN50
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
4.3"
Environment :
Storage Temp.
-30 ~~ 80 °C
Operating Temp.
-20 ~~ 70 °C
RoHS
RoHS
Typical Features :
Hight Brightness，WLED Backlight，Life≥100K hours，Glossy
2.Kyocera TCG043WQLBAANN-GN50 Mechanical Details
Pixel Features :
Resolution
480(RGB)×272 [WQVGA]
Dot Pitch (W×H)
0.066×0.198 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.198×0.198 mm [128PPI]
Mechanical Size :
Active Area(mm)
95.04(W)×53.856(H)
Overall Dim.
105.5(W)×67.2(H) mm
Bezel Opening
98.7(W)×57.5(H) mm
Depth(mm)
5.9±0.3 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
16:9
Orientation
Landscape type
Other Spec :
Weight
75.0g
Surface
Glare (Haze 0%)
3.Kyocera TCG043WQLBAANN-GN50 Optical Details
Basic Information :
Luminance(cd/m²)
800 (Typ.)
Contrast Ratio
350:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/65 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
25 (Typ.)(Tr+Td) (ms)
Color Performance :
White Coordinate
Wx:0.320; Wy:0.350
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6022K
White Uniformity
-
1931 Color Gamut :
NTSC Ratio
46%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4.Kyocera TCG043WQLBAANN-GN50 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON
5.Kyocera TCG043WQLBAANN-GN50 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
14.2/21.3mA (Typ./Max.)
Signal Type :
Parallel RGB (1 ch, 8-bit)
Signal Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Quantity
Pins
Pitch
Pin Configuration
1 pcs
40 pins
0.5 mm
6.Kyocera TCG043WQLBAANN-GN50 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
100K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
21.0/24.7V (Typ./Max.)
Current Supply
60mA (Typ.)
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver
No
