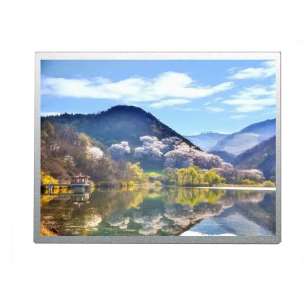

M150GNN2 R3 IVO 15.0 inch 1024*768 lcd screen lcd display panel LCD Module Display M150GNN2

IVO M150GNN2 R3 Application DetailsBasic Detail :Panel BrandIVOModel NameM150GNN2 R3Panel Typea-Si TFT-LCD , LCMAnoth

Model	M150GNN2 R3
Brand	IVO
Size	15inch
Resolution	1024*768
Brightness	420cd/m2
Perspective	80/80/80/80
Interface	LVDS
Operating Temp	-10 ~ 65 °C
Production State	In Production

Click For Price

IVO M150GNN2 R3 Application Details

Basic Detail :	Panel Brand	IVO	Model Name	M150GNN2 R3
	Panel Type	a-Si TFT-LCD , LCM	Another Name	M150GNN2-R3
	Panel Size	15.0”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-10 ~ 65 °C	ST Temperature	-20 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight, With LED Driver,180°C;Reverse, Matte

IVO M150GNN2 R3 Optical Details

Basic Information :	Luminance	420 cd/m²(Min.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	16 (Typ.)(Tr+Td) ms
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.305; Wy:0.325	Display Colors	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6974K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	70%	sRGB	93% coverage
	Adobe RGB	71% coverage	DCI-P3	73% coverage
	Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

IVO M150GNN2 R3 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (mm)	0.099*0.297 mm	Pixel Pitch (mm)	0.297*0.297 mm [85PPI]
Physical Size :	Active Viewing(mm)	304.128(W)*228.096(H) mm	Bezel Area (mm)	307.4(W)*231.3(H) mm
Physical Size :	Outline Dim. (mm)	326.5(W)*253.5(H) mm	Outline Depth	12.0 (Typ.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.20Kgs (Max.)	Surface	Antiglare, Hard coating (3H)

IVO M150GNN2 R3 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (180°)
Total Consumption :	8.8W (Max.)

IVO M150GNN2 R3 Interface Details

Signal Systerm :		LVDS (1 ch, 8-bit)
Signal Electrical :	Voltage Input			3.3V (Typ.)		Current Input	0.25A (Typ.)
	Consumption			1.3W (Max.)
Interface Features :	Position			-		Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch	Pins	Amount	Pin Assignment
	STM		MSB240420HD		1.25mm	20pins	1 pcs

IVO M150GNN2 R3 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

10S3P

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

3 strings

Lamp Life

30K(Min.) Hours

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

STM

MSB24038P5A

1.25mm

5pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Supply

10.8/12.0/12.6V (Min./Typ./Max.)

Current Supply

240mA (Typ.)

Consumption

7.5W (Max.)

IVO M150GNN2 R3 Packing Details

Package Box :	Amount	Size (LWH)	Weight
Package Box :	14 pcs / box	406331343 mm	18.0 Kgs
