Industrial-grade T070S-5RB0118N 7-inch 5-wire resistive touch panel offers superior durability & precision for HMI, medical & kiosk applications Request samples!
| Part No. | T070S-5RB0118N-ZA11R0-080PH |
| Brand | HIGGSTEC |
| Thickness Overall | 7.0 inch |
| Thickness Overall | 2.60mm |
| Tail Design | G+G |
| Outside Area | 189.95*128.99mm |
| Active Area | 153.10*92.14mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Model
T070S-5RB0118N-ZA11R0-080PH
Type
Touch Window (2-layer)
Input Mode
Stylus or Finger
Frame Size
View Area
Total Thickness
Operation Temperature
Storage Temperature
Operation Humidity (Non-Condensing)
Storage Humidity (Non-Condensing)
Transparency
Haze
Loop Resistance

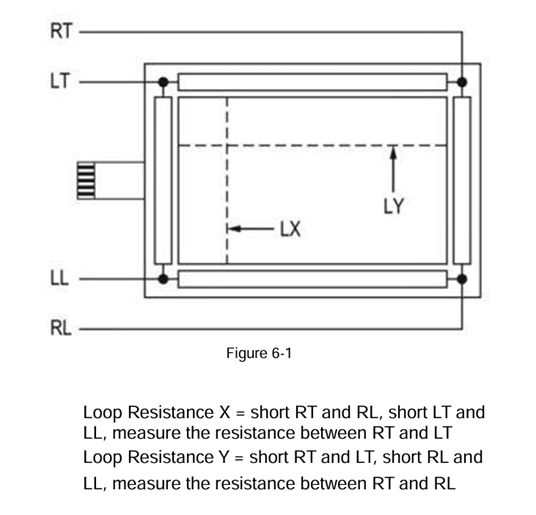

X:20~5000,Y:20~5000 (see Figure 6-1)
Linearity
X≤1.5%,Y≤1.5% (See Figure 10-2)
Chattering
≤15ms
Insulation
≥20MQ/25V(DC)
Endurance
No acting damage at DC50V/60sec.
OperatingForce
Stylus= R0.8
≤50g
Impact
25.0ΦDlA. Steel Ball /67gHeight=50cm
1 time, no damage【lmpact at center area】
Static Load
5000g within 10cm2 area for 30sec
Conforms to Section 07tem-1
Conforms to Section 06ltems-1.2&4
Hardness
3H pencil, pressure 750g/45°
≥3H
Tail Peeling
800g by vertical 90°
Satisfy (1) of ltem 6
Tail Bending
90°10 times up & down
Satisfy(1)of ltem 6
Knock Test
10.000,000 times
a.Conforms to Section 06,ltems-1 & 4
b.Section 06,ltem-2 maintainsX≤2.5%,Y≤2.5%.
c.Operating force remains ≤200g afterdurability test
T070S-5RB0118N-ZA11R0-080PH 7-inch 5-Wire Resistive Touch Panel
High-Performance Touch Solution for Demanding Environments
✔ Premium Features:
5-Wire Technology - Enhanced durability & accuracy vs standard 4-wire models
Military-Grade Durability - Withstands 10+ million touch cycles
High Optical Clarity - ≥85% light transmittance
Wide Temperature Range - Stable operation from -40°C to +85°C
Multi-Input Support - Works with stylus, gloves or bare fingers
✔ Technical Specifications:
Model Number: T070S-5RB0118N-ZA11R0-080PH
Technology: 5-Wire Resistive
Active Area: 154.08 × 85.92 mm (7" diagonal)
Surface Hardness: 4H (scratch-resistant)
Interface: 5-Wire Analog
Operating Voltage: 5V DC ±10%
Touch Points: Single
Operating Temperature: -40°C to +85°C
Storage Temperature: -50°C to +90°C
Transmittance: ≥85%
Lifespan: 10M+ touch cycles
✔ Industrial Applications:
Industrial HMI & Control Panels
Medical Diagnostic Equipment
Military/Aerospace Displays
POS/Kiosk Systems
Vehicle-Mounted Consoles
Oil/Gas Field Monitoring
